Full Size Full Matrix Portable Changeable Message Sign

Full Size Full Matrix Portable Changeable Message Sign

HK-VMSP-8*7-5L/57.2

Solar Panels 38V/300W, top-mounted at a fixed angle
Batteries 12V/250AH × 2P sealed, maintenance-free, concealed within the sign.
LED Lights 48X27 Pixel, Amber color
Sign Panel 112” x 68” MUTCD all-carbon steel construction, sealed and waterproof
Controller Mobile app with multiple operating modes
Main Frame Advanced carbon steel construction
Axle 2150 lbs
Tire Size ST205/75 D15
Removable Tongue Designed for convenience and safety.
Hitch Pintle ring
Warranty Information The VMS signs trailer comes with a 1-year limited warranty. For detailed warranty information, please contact us.
Dimensions 127” x 117” x 76” (H x W x D)
Power 12 Volt D/C power
Item Weight 1880 pounds
Manufacturer HANKUN

Quantity:

Buy Now

Contact Now

add to cart

Full Size Full Matrix Portable Changeable Message Sign (HK-VMSP-8*7-5L/57.2)

VMS PCMS3200 The Ultimate Solar-Powered Traffic Management Solution for Global Roads

112″ X 68″ VMS Traffic Control Trailer - Key Selling Points

Large-Size High Visibility : 112″X68″ amber LED display delivers clear traffic messages day and night, suitable for work zones, highways, and other scenarios.
Multi-Device Remote Control : Supports remote management via Wi-Fi, mobile app, PC, or controller for convenient and efficient operation.
Solar-Powered Uninterrupted Operation : Solar energy + backup batteries with overcharge protection ensure 24/7 continuous operation.
Easy Transport & Deployment : Foldable towing frame + stabilizing legs, operable by a single person, stable even in high-wind conditions.
Durable & Low-Maintenance : Sealed all-carbon steel structure + waterproof coating, easy replacement of batteries and LED modules, hassle-free for long-term use.
Eco-Friendly & Energy-Efficient : Consumes 80% less power than traditional signage, leak-free sealed batteries, made with recyclable materials.

portable changeable message signs

Display Excellence

Feature	Technical Specification
Display Type	Full matrix, 5-P Amber LED
Pixel Pitch	P57.2mm
Brightness	≥8000 MCD/m² (sunlight-readable)
Matrix Dimensions	W3203mm x H1830mm (customizable)
Resolution	56 pixels (width) x 32 pixels (height) & 48*27
Character Display	4 lines, 8 characters per line (5x7 pixel matrix) & 3 lines, 8 characters
Message Storage	Over 300 preloaded messages
Power Source	Solar-powered (2x500W monocrystalline panels) + 2x12V/500AH gel batteries
Autonomy	72+ hours continuous operation
Solar Panel Function	360° rotatable for optimal sunlight capture
Lifting System	Hydraulic mast (0-110cm adjustment, 1-person operation)
Trailer Construction	Hot-dip galvanized steel, yellow powder-coated frame
Weather Resistance	IP55 waterproof/dustproof
Temperature Range	-30°F to 140°F (-34°C to 60°C)
Compliance	MUTCD, AS/NZ, EN 12966, CE, RoHS, EMC
Transport Dimensions	L3150xW2050xH2550-3150mm (varies by screen size)
Weight	880kg (trailer-mounted, easy to tow)

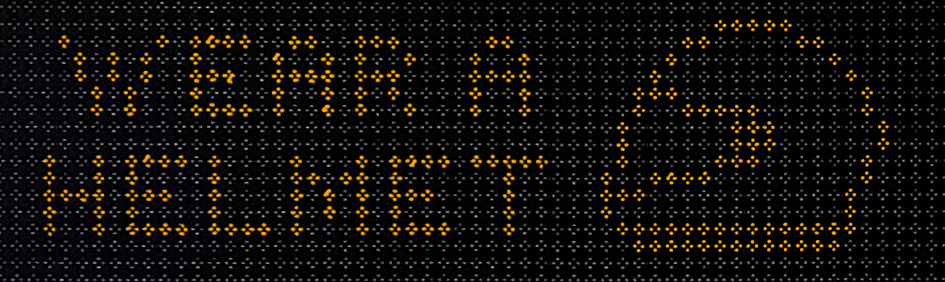

Solar powered Portable Traffic Message Signs Display example

Amber Portable Changeable Message Sign: Sydney's Silent Guardian of Traffic

In sunlit Sydney, a significant road upgrade was underway. In a city famed for its beaches and sunshine, the project was slated to last two months. The populace was initially apprehensive, fearing daily commutes would become a challenge and the city's rhythm would be disrupted.

However, a towering Portable Amber Changeable Message Sign became the vanguard of this project. Positioned prominently on a primary city thoroughfare, it wasn’t just an informer but a protector of the city's hustle and bustle. Its P57.2 large-pitch LED display shimmered under the Sydney sun, offering residents timely updates about the construction and alternate route suggestions.

Jack, a long-time Sydney resident, had initially planned to alter his work route during the construction period. But thanks to the timely updates and clear directions from the Amber Message Sign, he found his daily commute relatively unaffected.

Throughout the construction, the sign became a beacon of trust for the citizens. Not only did it provide real-time traffic details, but it also conveyed the construction team and city government's commitment to the safety and comfort of its residents.

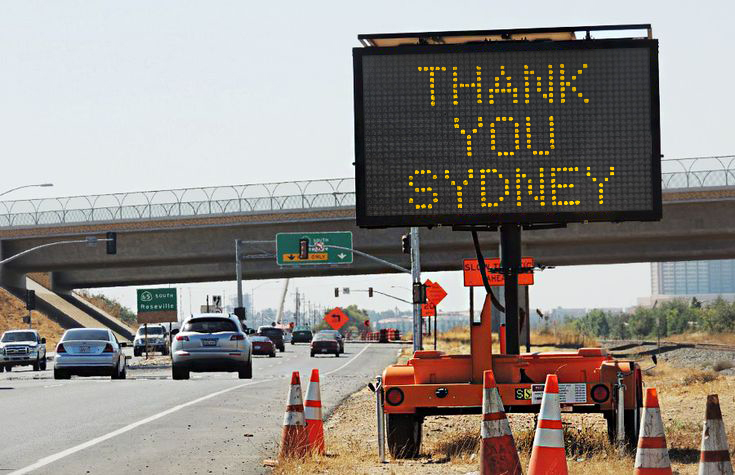

Two months later, as the project concluded on schedule, the message on the Amber Sign read: "Thank you, Sydney! For a brighter future, we appreciate your support and cooperation."

For Jack and many other Sydneysiders, this sign was more than just an information board; it symbolized the city's promise and responsibility to its inhabitants.

HIGH-QUALITY LED DISPLAY MODULES HAVE GOOD "VISUAL" FUNCTIONS

According to the purpose of VMS, advertisements and traffic information are released. Various pitch pixels and display units are required, such as lens, full color, amber, 5 (colors red, yellow, blue, green, white).

Han Kun has more than 10 years of producing experience and feedback from thousands of customers around the world tell us that we need in-depth communication on the purpose to have a better solution and deliver it!

Solar System and Display
Solar Panel	38V/500W * 2P mono-crystalline silicon solar panels
Solar panel bracket function	360 degrees free rotation and locking function, electric contraction to adjust the Angle of solar light
Solar Charge System	100A charge manager and AC110V-220V the mains charge management
Battery	Lead-acid valve control battery 12V/500AH * 2P
Battery	Warranty 1 years
Size	3200W*1830H(mm)/customized
Display Color	Amber
Brightness	≥8000MCD/ M2
The consumption of energy	≤120W/M2
Pixel Distance	P57.2
Waterproof	IP55
Chip	Wafer/customized

Trailer
Material	Square steel tube(808040 mm),884cm,channel steel customzied
Color	Amber or orange/customized
Fender	Good radians between wheels and fenders made it stable
Damping spring	Double spring 750505P*2,chassis shockproof protect the display
Wheel	205/ 70R15, bearing 755kg. Maximum speed 100KM / H, maximum load 1.5T
Guide Pulley	Adustable lifting±30cm,load-bearing 300KG/pcs
Trailer Jack	360 degree rotation,height:85cm
Trailer Size	L31502050W2550-3150H(mm) Specifications according to LED screen body
Brake System	Non-brake or with brake or automatic- brake / customized
Screen Rotation	360 degree rotation of the screen, any point lock function / customized
Rear Light Function	The electric brake is used together with the power source, and the turn signal, width indicator and brake light/customized
electric and hydraulic Lifting System	With the electric and hydraulic system, the LED screen can rise and fall at will from 0cm-110cm, and the rising and falling height can stay and fall at will within the range
