Changeable LED Solar Classic Matrix Message Signs board

HK-VMSP-4L-48

Solar-Powered Intelligent Traffic Management Solution
Our MUTCD-Compliant Changeable LED Solar Classic Matrix Message Signs revolutionize roadway communication with multi-functional integration:
Smart Traffic Control Core
Full Matrix 8,000cd/m² Amber LED Display with IP58 Waterproof Polycarbonate Screen
Embedded Speed Radar Synchronization (DSRC/C-V2X compatible)
Real-time GPS Tracking & Anti-Vandalism Locking System
Speed radar device.
Security features – GPS tracking, padlock covers.
High quality LED lights.
Solar powered / environmentally friendly.
Programming options – laptop on site, SMS, internet or App
Please provide the ideal specifications, and we will complete your project!
We deliver to the project site through Ningbo Port or Shanghai Port!

Quantity:

Buy Now

Contact Now

add to cart

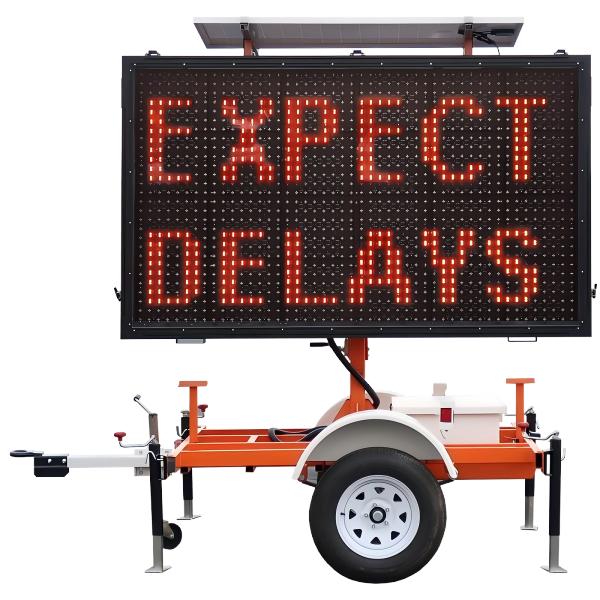

Changeable LED Solar Classic Matrix Message Signs board

Amber variable message Signs trailer

As a professional manufacturer, HANKUN independently develops the Changeable LED Solar Classic Matrix Message Signs Board, a game-changer in traffic control safety.

This 98″ X 60″ VMS trailer integrates high-brightness LED matrix technology with efficient solar power supply, designed to deliver clear, real-time messages in highways,

Construction zones, and public event venues. Unlike traditional passive reflective signs, its active luminous system ensures 60% longer recognition distance even in rain, fog, or night conditions.

Equipped with intelligent remote control and durable carbon steel structure, it balances operational convenience, environmental protection, and long service life—an ideal solution for modern traffic management needs.

Changeable LED Solar Classic Matrix Message Signs Board 98″ X 60″ VMS Traffic Control Trailer
Category	Key Item	Factory-Standard Specification
Core Product Overview	Product Model	HK-VMSP-4L-48 (factory direct, customizable)
	Manufacturer	HANKUN (ISO9001 Certified Manufacturer)
	Warranty	5-year limited warranty (covers parts & labor; extended warranty optional)
	Overall Dimensions (H × L × W)	111” × 112” × 76” (foldable for space-saving transport)
	Net Weight	1860 pounds (high-strength material reduces weight by 15% vs peers)
LED Matrix Display Core	Sign Panel Size	98” × 60” effective display area (MUTCD compliant)
	Pixel Pitch	P50 pixel pitch (50mm spacing, uniform light distribution)
	PCB Configuration	6×7 pixel matrix per PCB; support modular expansion for custom needs
	LED Parameters	48×27 amber SMD LED array; luminous efficiency ≥ 110lm/W
	Display Capacity	3 rows × 8 characters standard; support scrolling display
	Display Function	Animation + image markers + text coexistence; auto-dimming (100-5000cd/㎡) for all light conditions
	Sign Panel Structure	All-carbon steel frame; IP65-rated fully sealed, dustproof & waterproof
	Protection Performance	Anti-corrosion powder coating; resistance to -35℃~60℃ extreme temperature
Solar Energy Supply System	Solar Module	38V/300W monocrystalline silicon panel; 17% conversion efficiency, top-mounted fixed angle
	Battery Configuration	2×12V/200AH sealed AGM batteries; maintenance-free, hidden installation
	Power Supply	12V DC, stable output
	Protection Mechanism	Overcharge/over-discharge protection; reverse polarity protection; low-voltage cutoff
	Backup Power	Dual power: solar + AC 90-230V; 72h continuous work without sunlight
Intelligent Control & Operation	Control Mode	Triple control: iOS/Android APP + PC software + dedicated controller
	APP Function	Remote message edit/save; real-time battery/solar status monitoring; one-click mode switch
	Stability Configuration	Reinforced locking system; wind resistance ≥ 100km/h (stable in severe weather)
Heavy-Duty Trailer Structure	Main Frame	High-strength carbon steel; integrated welding; load-bearing ≥ 2500lbs
	Axle	2150lbs axle with high-precision bearing; low-noise operation
	Tire Specification	ST205/75 D15 heavy-duty tire; anti-skid, wear-resistant (service life ≥ 3000km)
	Towing System	Pintle ring hitch; removable tongue (quick disassembly for storage)
	Transport Feature	Foldable towing frame + retractable stabilizing legs; no rear braces (avoids transit damage)
Factory Core Advantages	Maintenance Convenience	Modular design; 10-minute quick replacement for batteries/LED modules; global standard parts
	Energy Efficiency	80% lower power consumption than traditional signs; annual energy saving ≥ 500kWh
	Eco-friendly Design	Recyclable steel frame; leak-proof batteries; 40% faster charging (reduces downtime)

RFQ:

✅ Global Project Readiness
Instant Configuration via Web/App/SMS (3G/4G/LoRaWAN)
Preloaded 50+ MUTCD/WZTC Standard Templates
Pictogram Library & Multilingual Support
✅ Turnkey Delivery Assurance
EXW/FOB/CIF Global Shipping from Shanghai/Ningbo Ports
15-Day Rapid Deployment Guarantee
On-site Technical Training Included
Certified Applications
➤ Highway Speed Advisory Systems (DSRC Enabled)
➤ Smart City Dynamic Parking Guidance
➤ Construction Zone Merge Alert Solutions
➤ Emergency Incident Management Networks
