Portable Amber VMS | Mid-Size Full Matrix LED Message Board
Designed for diverse applications, it offers multiple sizes and amber display options for optimal project fit.
We support full customization and guarantee dispatch within 15 days of order confirmation.
Your unit will be shipped securely and efficiently via Ningbo or Shanghai Port for timely project delivery.
Portable Amber VMS | Mid-Size, Full Matrix LED Message Board | HANKUN
Mid-Size Portable Amber VMS: High-Visibility Full Matrix LED Display
"HANKUN's mid-size portable Amber VMS delivers crystal-clear dynamic messages for traffic control & events. Featuring a full matrix LED display, robust solar power, and easy towing.
Get a custom quote today."

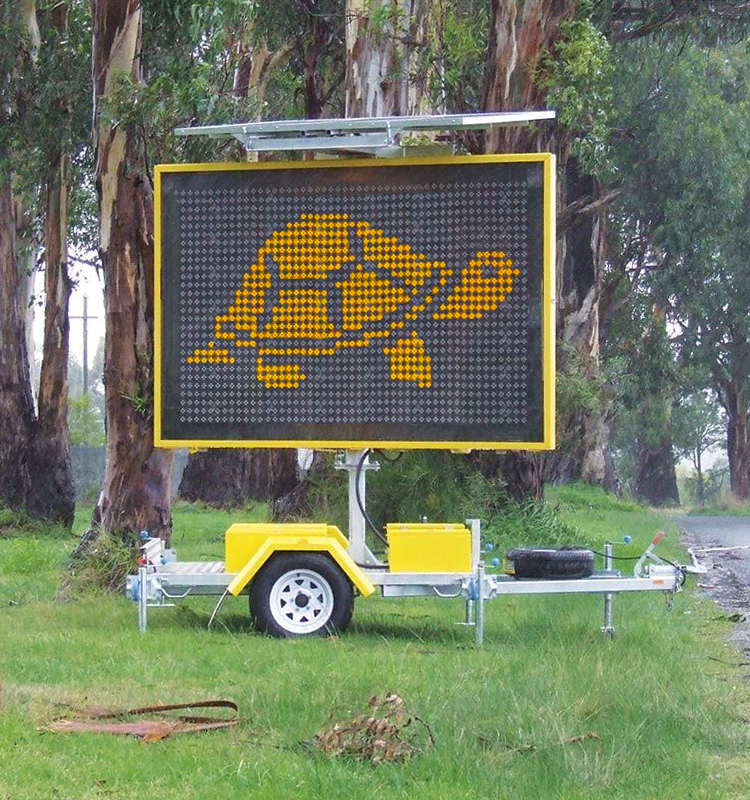

The HK-PCMS-3750 is a fully integrated, solar-powered portable VMS designed for critical communications at any location.
Combining a high-visibility amber full-matrix LED display with a robust, galvanized steel trailer,
it delivers dynamic messages and graphics wherever needed, without reliance on grid power.
True Full-Matrix Design: Unlike segmented signs, every pixel is individually controlled, enabling the display of dynamic graphics, animations, and any global language.
Superior Legibility: With a high density of 4 amber LEDs per pixel and optimal P37.5mm pitch, messages remain crisp and readable even in direct sunlight.
Regulatory Assurance: The display is engineered to meet stringent international standards including MUTCD, CE, and EN12966, ensuring compliance for public roadway use.
HK-PCMS-3750 Portable Amber VMS: Complete Technical Specifications
| Category | Item | Specification |
|---|---|---|
| General | Model | HK-PCMS-3750 |
| Product Type | Portable, Solar-Powered, Full Matrix Amber VMS | |
| Display System | Viewable Area | 2000mm (W) x 1600mm (H) [Configurable] |
| Matrix Resolution | 48 (W) x 35 (H) Pixels | |
| Pixel Structure | 4 Amber LEDs per Pixel | |
| Pixel Pitch | P37.5mm | |
| Character Display | Up to 5 lines x 8 chars (5x7 pixel matrix per char) | |
| Fonts / Standards | 40 Built-in Fonts. Complies with MUTCD, AS/NZS, CE, EN12966, RoHS, EMC | |
| Brightness | ≥8000 cd/m² | |
| Ingress Protection | IP56 (Dust-proof & Protected against powerful water jets) | |
| Message Storage | Capacity for >300 Messages | |
| Key Feature | Full Matrix for dynamic graphics & any global language | |
| Trailer & Power System | Frame Construction | Hot-Dip Galvanized Steel, MIG Welded, Yellow Powder Coated |
| Corrosion Resistance | >20 Years | |
| Solar System | 2 x 250W Monocrystalline Panels (360° adjustable) + 40A MPPT Controller | |
| Battery | 4 x 12V / 200AH Deep-Cycle Gel Batteries | |
| Lifting Mechanism | Hydraulic Mast, 1200mm Lift, One-Person Operation | |
| Tow Coupling | Standard 50mm | |
| Braking & Stability | Double Disc Brakes, Safety Wheel Chain, Y-Support Stand | |
| Mast Lifting | Hydraulic System, 1200mm travel | |
| Intelligent Control | Control Methods | Remote Wireless (4G/Wi-Fi), USB |
| Software Features | GPS Geolocation, Electronic Fencing, Message Scheduling | |
| Content Editing | Compatible with PC, Laptop, and Mobile Phone | |
| GPS Feature | Real-time tracking and geo-fencing alerts |
Proven VMS for Global Road Safety
This portable Amber VMS delivers critical messages with up to 2000m visibility, fully compliant with MUTCD & AS/NZS standards. It embodies our 20+ years of expertise, with over 60,000 units ensuring safety on roads worldwide.
Get Your Exact Quote in 3 Steps:
Tell Us Your Needs: Target Qty ______ | Main Use: [Work Zone / Traffic / Event / Other]
Specify Configuration: Pixel Pitch: [P37.5 / Custom] | Key Region: ______
Submit & Receive a tailored solution and competitive price.
Your Custom Quote Now
