C Size 5 colour LED VMS trailer signs
Core Features

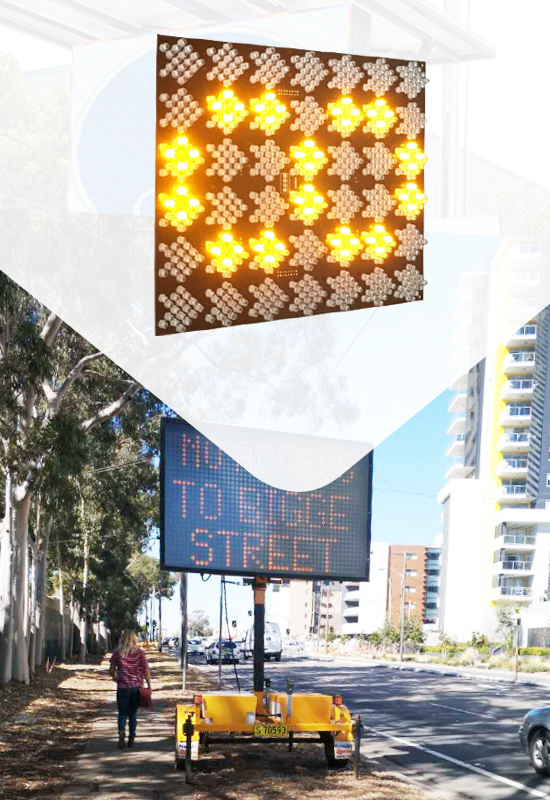

✅ 5-Colour Dynamic Alerts
Red/Green/White/Blue/Amber LED Matrix: color codes for precise road messaging
P57.2 Pixel Pitch: 3,000m visibility range under direct sunlight
✅ Remote Intelligence
3G/4G Cloud Control: Update messages via app/web without on-site visits
Real-Time GPS Tracking: Geo-fencing & anti-theft alerts compatible with NSW TfNSW asset protocols
✅ Australian-Optimized Design
Heavy-Duty Chassis: Corrosion-resistant steel, compliant with VicRoads Type c trailer specs
Key Advantagual-certified: Smart Security
Tamper-proof locking system + 24/7 location history logs
Automatic brightness adjustment (5,000-10,000cd/m²)
Rapid Deployment
15-day delivery from Shanghai/Ningbo/Shenzhen ports to Sydney/Melbourne
- Matrix Dimensions: W3368mm x H22200mm

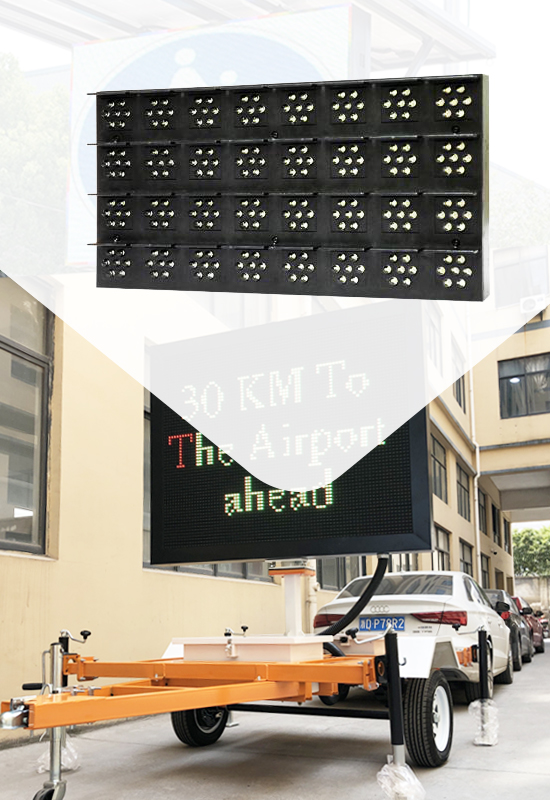

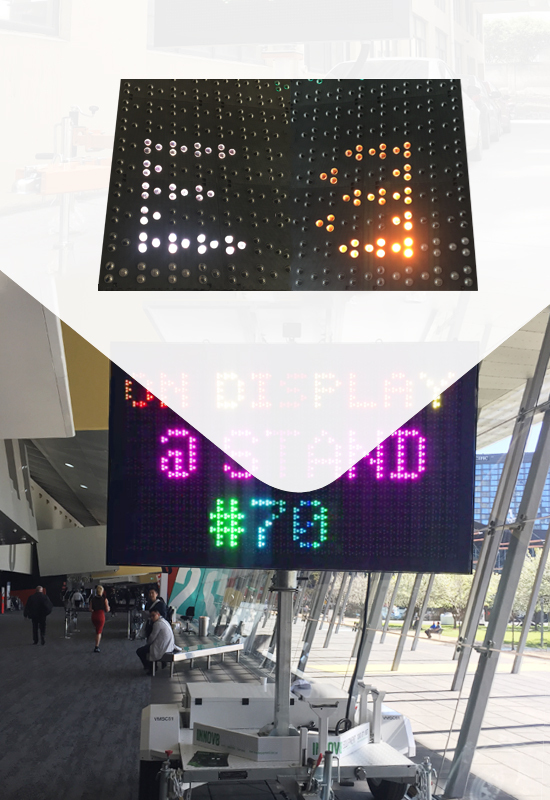

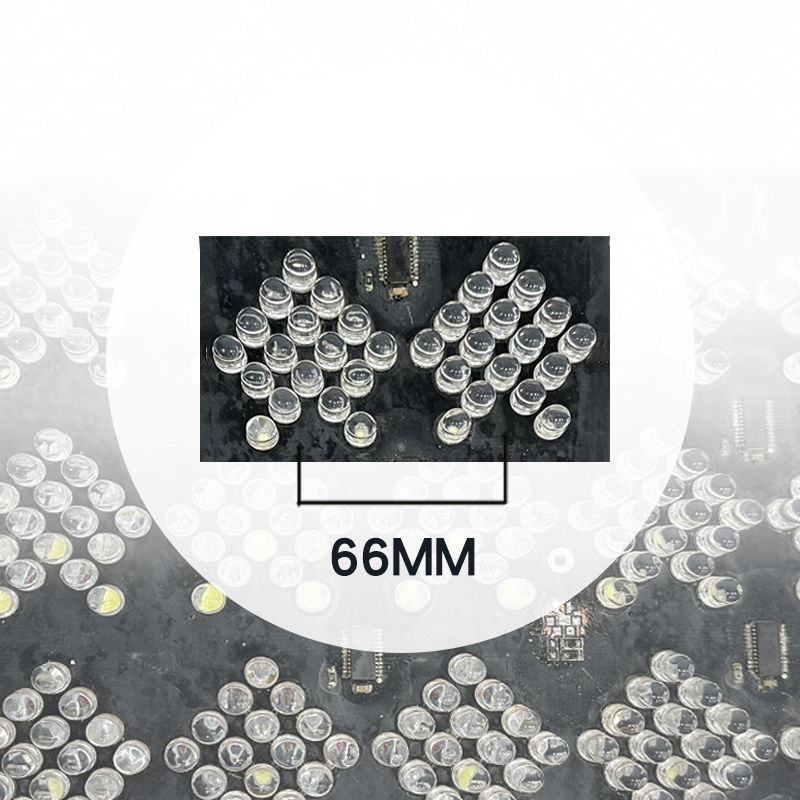

- Resolution: Each pixel is made up Red, amber, blue, green, and white. LEDs.
- Pixel Pitch:P57.2mm
- Matrix Configuration: 54 *35 pixels (2974.4mm*2000mm)

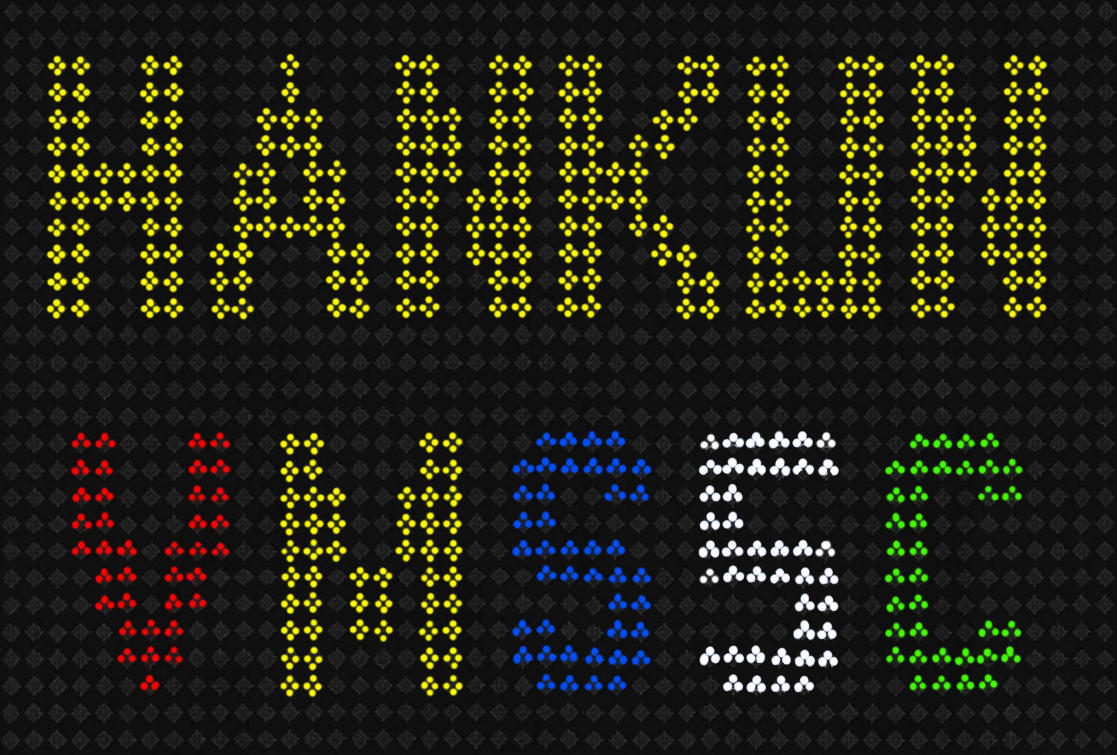

- Character Display: Supports up to 5 lines with 9 characters on each line. Each character is constructed from a 5 x 7 pixel matrix. A total of 40 standard fonts are available.
- Key Feature: The 5 colour LED VMS trailer signs is capable of displaying dynamic graphics combined with text. It's not limited by graphics or language, allowing for the display of content in any global language. It has a storage capacity for over 300 messages.
- Software Capabilities: Remote VMS management, GPS geolocation control, electronic fencing, and more.
- Content Editing: Compatible with mobile phones, laptops, and PCS
- Construction: Crafted from hot-dip galvanized steel, the trailer is MIG welded and boasts a yellow powder-coated frame for added durability.
- Power System: Equipped with a hydraulic mast lifting mechanism and 4 units of 12V gel deep-cycle batteries (600AH) for prolonged operation.
- Solar Capabilities: This VMS is fitted with 2 panels of 250W solar energy, complemented by a 40-amp solar controller, ensuring efficient energy conversion.
- User-friendly Lifting: The effortless hydraulic mast lifting system allows for easy one-person operation to raise or lower the display board.

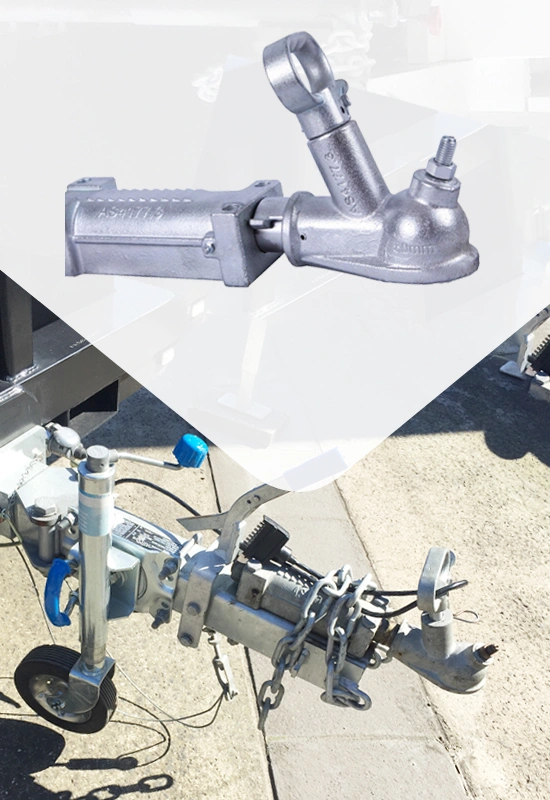

- Towing: With a 50mm diameter tow coupling, it's compatible with the majority of vehicles.
- Optimal Positioning: The solar panel on the message board can rotate a full 360 degrees, locking at any desired angle for optimal sunlight capture.
- Stability & Safety: Double disc brakes ensure the message board remains stationary during use, complemented by a safety wheel chain. The Y-support provides stability to the message board when in transit.
- Longevity: The hot-dip galvanized steel structure promises corrosion resistance for over two decades.
- Compliance: Adheres to AS NZ standards, MUTCD compliant, and meets CE, EN1296, RoHS, EMC, and IP56 regulations.

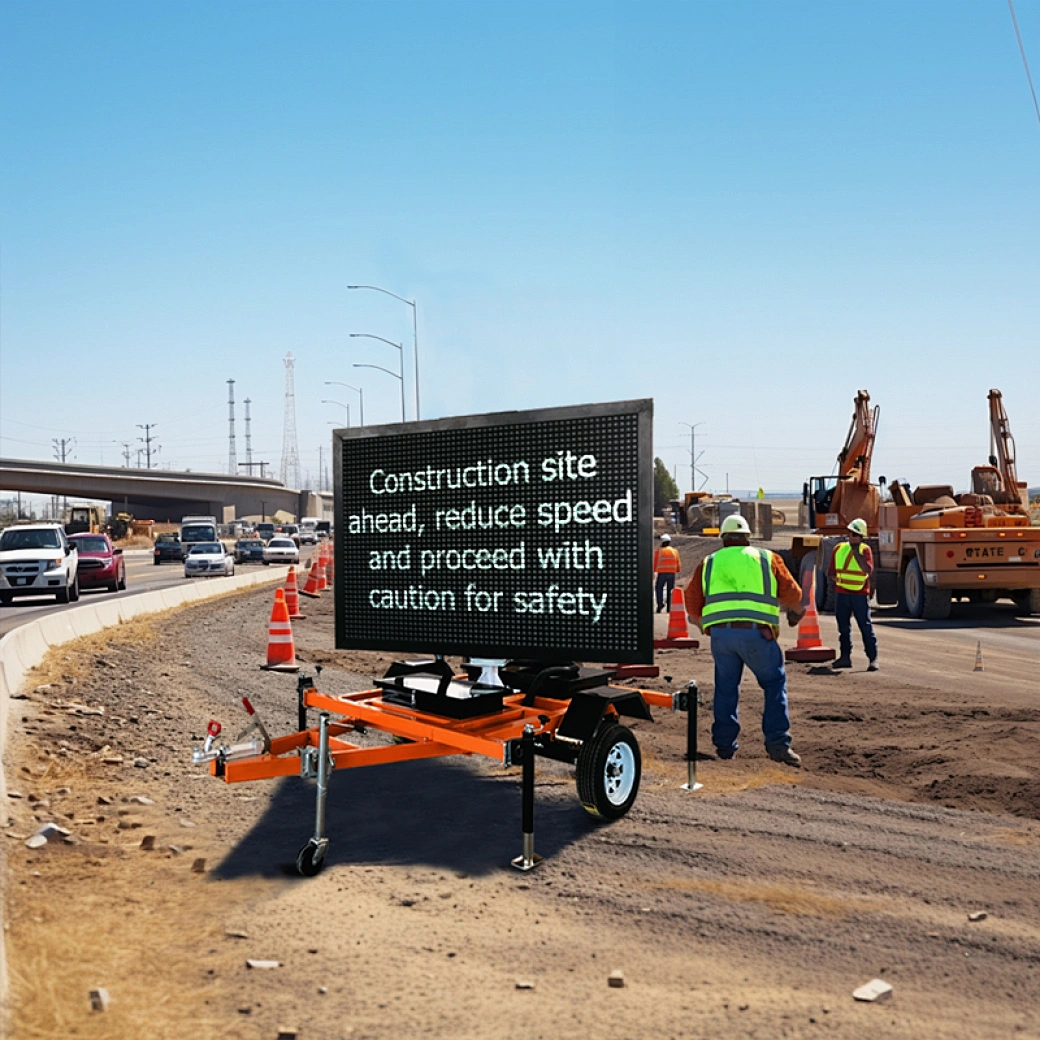

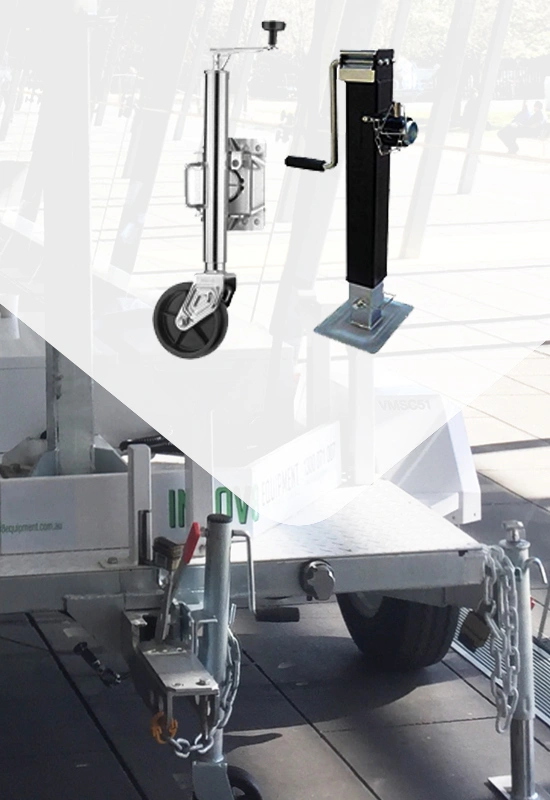

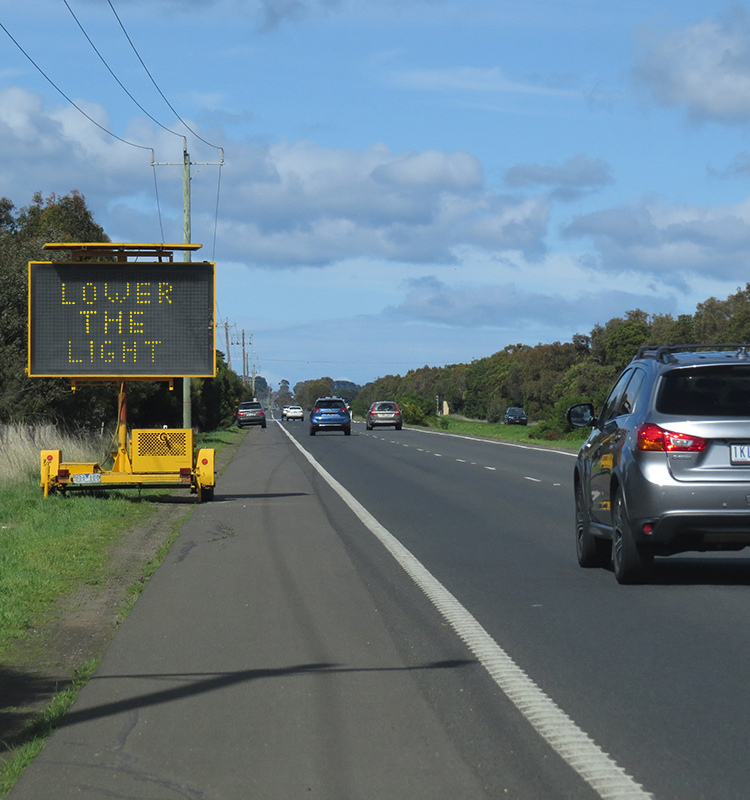

These5 colour LED VMS trailer signs are not only used for road works, accidents, diversion routes or events, but also for striking dynamic advertising. With the free programmable 5-color LED Display, many different texts and / or images can be displayed alternately so that the information stands out. This VMS Trailers are equipped with a hydraulically extendable mast which is equipped with a 360 degree rotatable 5 color LED display. Extendable manual support legs are mounted on the corners of the chassis for very stable stamping. These VMS Trailers can easily be managed via our Internet application VMS Control. This can be done with a PC, Tablet or Smartphone.These VMS Trailers work entirely on solar energy and therefore do not cause any noise nuisance, making them very suitable for placement within the urban area. No driving license BE (trailer) is required for these VMS Trailers because they are less than 950 Kg Solar VMS Trailer 5 color LED display
