5-Color VMS Variable Message Sign
HK-VMS-37.5/5 COLOUR
HAN KUN 5-Color Intelligent VMS System | Global Road & Commercial Solutions
Multipurpose Solar-Powered 5-Color VMS Boards – All-scenario smart displays for traffic management and commercial communication, available in 37.5/50/57.2/28.5mm pixel pitch models, supporting 1,000-3,000m visibility ranges.

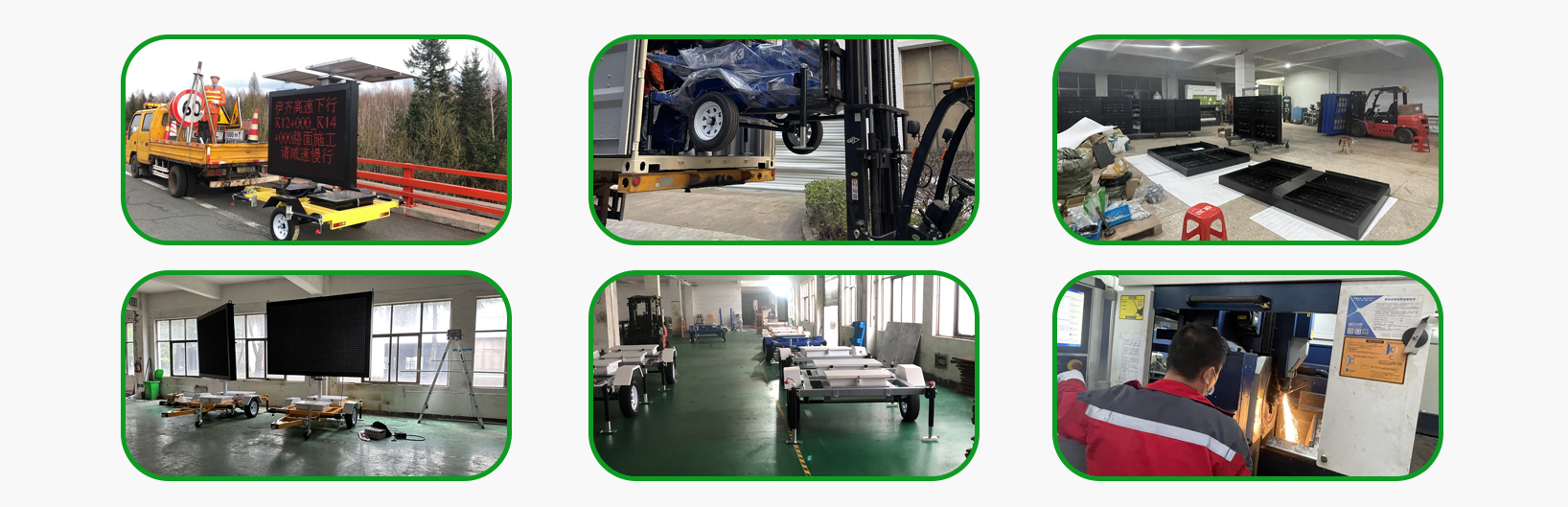

Global Deployment
✈️ Smart Manufacturing Advantage
Yiwu production base: 12,000 units/year (ISO 9001/14001 dual-certified)
30,000+ global deployments across 68 countries
15-day shipping from Ningbo/Shanghai/Shenzhen ports (Incoterms® 2020)
Control Platform
?️ BartcoLive Pro Suite
Cloud-based scheduling via Web Studio
Geo-fenced content targeting + time strategies
Real-time diagnostics API (SCADA compatible)
Procurement Support
? End-to-End Service
48-hour technical response guarantee
Zoom/Teams/Tencent Meeting cross-border inspections
Multipurpose Solar-Powered 5-Color VMS Boards – All-scenario smart displays for traffic management and commercial communication, available in 37.5/50/57.2/28.5mm pixel pitch models, supporting 1,000-3,000m visibility ranges.
Global Deployment
✈️ Smart Manufacturing Advantage
Yiwu production base: 12,000 units/year (ISO 9001/14001 dual-certified)
30,000+ global deployments across 68 countries
15-day shipping from Ningbo/Shanghai/Shenzhen ports (Incoterms® 2020)
Control Platform
?️ BartcoLive Pro Suite
Cloud-based scheduling via Web Studio
Geo-fenced content targeting + time strategies
Real-time diagnostics API (SCADA compatible)
Procurement Support
? End-to-End Service
48-hour technical response guarantee
Zoom/Teams/Tencent Meeting cross-border inspections
Quantity:

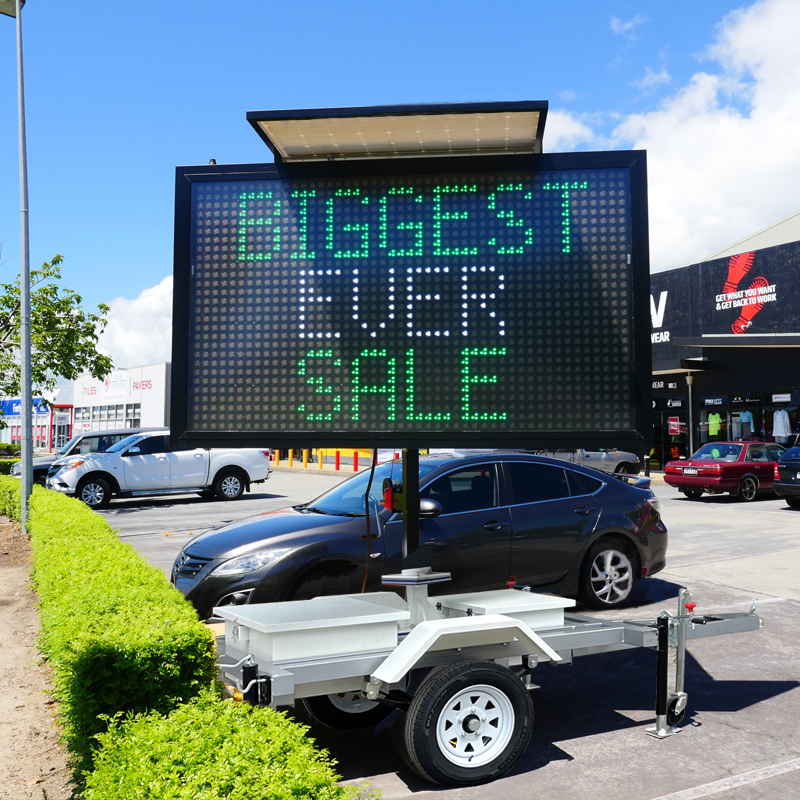

Portable 5 colour Variable Message Sign (VMS)
The Variable Message Signs (VMS) are trailer-mounted, and self-powered via solar panels and built-in battery bank. With inbuilt satellite GPS tracking,
Our 5 Color Matrix VMS boards can be used for traffic management on road projects, or as large size advertising message sign
DisplayExcellence 5 colour Variable Message Sign
- Matrix Dimensions: W2100mm x H1312mm
- Resolution: Each pixel is made up Red, amber, blue, green, and white. LEDs.

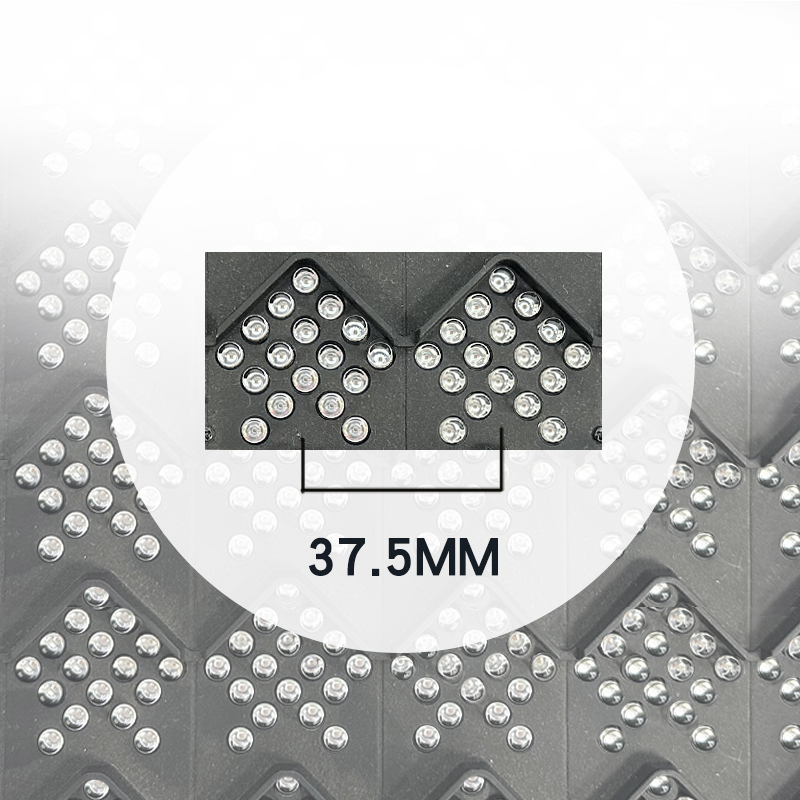

- Pixel Pitch:P37.5mm
- Matrix Configuration: 56 pixels and 35 pixels
- Character Display: Supports up to 5 lines with 8 characters on each line. Each character is constructed from a 5 x 7 pixel matrix. A total of 40 standard fonts are available.
- Industrial-Grade Portable Changeable Message Signs
- ✅ Core Tech
- 5 Display Sizes: 5-Color Full Matrix LED with 5000cd/m² Brightness
360° Rotatable IP68 Waterproof Housing & Auto-Dimming (-30°C~60°C)
Dual Power: Solar/Battery 120hr Operation✅ Smart Features
Real-Time GPS Tracking + Tamper Alert (4G/LoRaWAN)
Web-Based Remote Control: Multi-Language/Animation Programming
Plug & Play NTCIP Controllers: 5-Minute Setup✅ Global Compliance
MUTCD/EN 12966 Certified Aluminum Frame with DOT Reflectors
Wheel Chains & LED Tail Lights for Night Safety
Multi-Voltage Support: 110V/220V/380VCustom Solutions
➤ Highway Work Zones ➤ Smart City Parking ➤ Emergency AlertsRequest Site-Specific Configuration with Lifetime Warranty

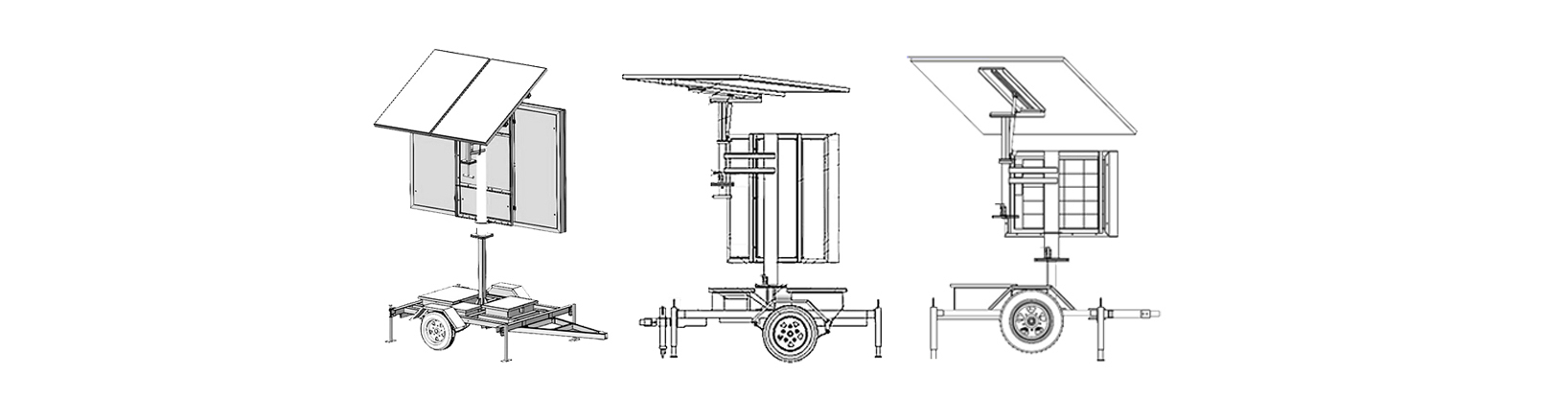

Trailer Features VARIABLE MESSAGE SIGN 5 COLOUR VMS
- Construction: Crafted from hot-dip galvanized steel, the trailer is MIG welded and boasts a yellow powder-coated frame for added durability.
- Power System: Equipped with a hydraulic mast lifting mechanism and 2 units of 12V gel deep-cycle batteries (200AH) for prolonged operation.
- Solar Capabilities: This VMS is fitted with 2 panels of 250W solar energy, complemented by a 40-amp solar controller, ensuring efficient energy conversion.
- User-friendly Lifting: The effortless hydraulic mast lifting system allows for easy one-person operation to raise or lower the display board.
- Towing: With a 50mm diameter tow coupling, it's compatible with the majority of vehicles.
- Optimal Positioning: The solar panel on the message board can rotate a full 360 degrees, locking at any desired angle for optimal sunlight capture.
- Stability & Safety: Double disc brakes ensure the message board remains stationary during use, complemented by a safety wheel chain. The Y-support provides stability to the message board when in transit.
- Longevity: The hot-dip galvanized steel structure promises corrosion resistance for over two decades.
- Compliance: Adheres to AS NZ standards, MUTCD compliant, and meets CE, EN1296, RoHS, EMC, and IP56 regulations.
The benefits of purchasing our VARIABLE MESSAGE SIGN 5 COLOUR VMS are as follows
1.The sliding message attracted 7 times the attention
2.Allows you to schedule different messages throughout the day
3.Advertise products and services while broadcasting other important information about your business
4.The sign is removable, so it can be placed where it will bring you the most benefit
5.Smart telescopic rods take up less space
6.360 degree rotation, moving signs follow traffic
7.Solar powered, working all day and night_no electricity needed
8.The trailer specifications we manufacture and comply with the regulations and certifications of various countries
9.Suitable for a variety of purposes of rectangular LED display and different pixel pitch
10.When you have difficulty choosing, please tell me the purpose of your 5 Color Matrix VMS
Solar Panel
38V/500W * 2P mono-crystalline silicon solar panels
. We have been enriching the signage, design & advertising industry VMS for 18 years.
