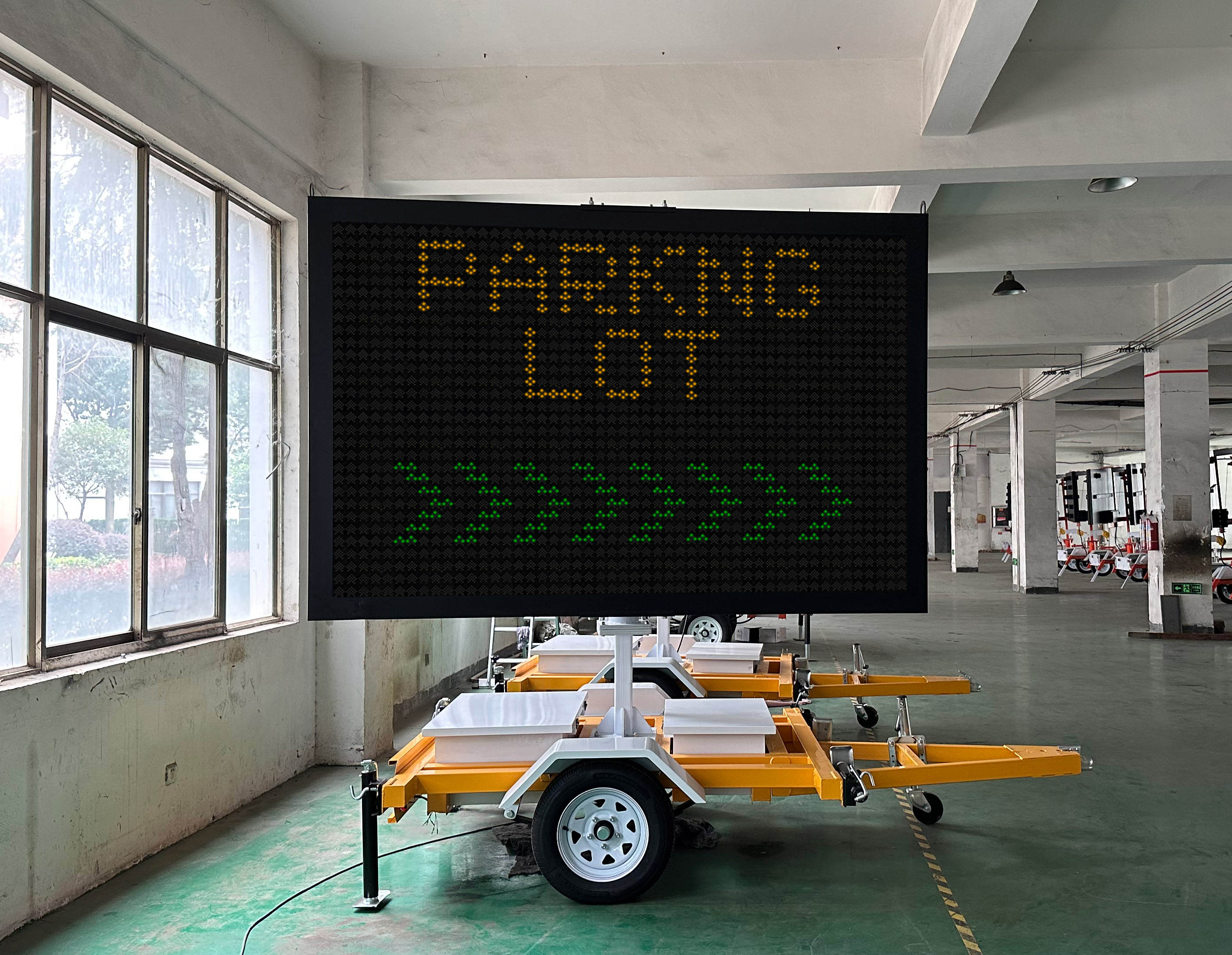

Solar Trailer 5-Color VMS Display

HK-MVMS-50-B-Size

Product Overview:
The Solar Trailer 5-Color VMS Display is engineered for stability and long-term, off-grid operation. Mounted on a heavy-duty, towable trailer chassis, this variable message sign combines high-visibility 5-color LED technology with a powerful integrated solar power system. It is the ideal solution for extended-duration applications such as highway construction, major infrastructure projects, and remote area work, where reliable, independent performance is critical. Its quick deployment and rugged design ensure maximum uptime and safety.

Quantity:

Buy Now

Contact Now

add to cart

Solar Trailer 5 color VMS display

Key Features

Robust Trailer Mounted Design
- Features a heavy-duty steel trailer chassis with a reliable towing hitch for easy mobility via vehicle.
- Equipped with stabilizing jacks/legs to ensure firm footing and wind resistance on uneven terrain.
High-Efficiency Off-Grid Solar System
- Integrated high-wattage solar panels and large-capacity batteries provide continuous power for weeks or months.
- Designed for long-term operation without reliance on mains electricity, perfect for remote sites.
Superior 5-Color LED Display
- Unique LED pixels capable of displaying Red, Amber, Yellow, Green, and White for highly intuitive messaging.
- Extreme brightness (≥7500cd/m²) with auto-dimming ensures perfect visibility from over 300 meters, day or night.
Advanced Wireless & Remote Control
- Manage your signs from anywhere. Control the display via 3G/4G or WiFi connection.
- User-friendly PC software allows easy creation and scheduling of text, graphics, and animations.
All-Weather Durability
- Rated IP65 for full protection against dust and water jets, built to withstand harsh outdoor environments.
- Operates reliably in a wide temperature range from -30°C to +70°C.
  Applications
- Highway and Motorway Maintenance Zones
- Long-Term Bridge and Tunnel Construction
- Major Urban Roadwork and Infrastructure Projects
- Remote Area Road Construction and Warnings
- Large-Scale Public Event Traffic Management
Technical Specifications

This section maintains your parameter structure but presents it in a clean, scannable format.

Category	Specification
Display & Matrix
Matrix Dimensions	2800mm (W) x 1750mm (H)
Matrix Configuration / Resolution	56 (W) x 35 (H) Pixels
Pixel Pitch	P50mm
Display Colors	Red, Yellow, Green, Amber, White
Brightness	≥7500 cd/m²
Viewing Angle	≥30°
Viewing Distance	≥300 meters
Content Display
Character Capacity	Up to 5 lines, 8 characters per line
Character Matrix	5 x 7 pixels per character
Available Fonts	40 Standard Fonts
Message Storage	Over 300 messages
Display Modes	Scrolling, Flash, Hold, Fade
Control & Communication
Control Mode	Wireless Remote (3G/4G/WiFi), LAN
Control Software	PC-based Editing & Management Software
Advanced Features	Remote VMS Management, GPS Geolocation, Electronic Fencing
Editing Compatibility	Mobile Phones, Laptops, PCs
Power & Environment
AC Input	AC 100-240V, 50/60Hz
Solar System	Integrated Solar Panel & Battery
Operating Temperature	-30℃ to +70℃
Storage Temperature	-40℃ to +85℃
IP Rating	IP65
Physical Structure
Chassis	Heavy-duty Steel Trailer
Mobility	Towable Hitch for Vehicle
Stability	Built-in Stabilizing Jacks/Legs

variable message sign

FAQ Section

Q: How long can the VMS operate on solar power alone?
Under average sunlight conditions, the integrated solar system is designed to power the display continuously for long-term projects.
The exact duration depends on usage and sunlight, but it is engineered for sustained off-grid operation.
Q: Is a special vehicle required to tow this VMS?
It is designed to be towed by standard vehicles with a suitable tow hitch. Please check the specific weight and towing requirements for your vehicle.
Q: Can the display be seen clearly in direct sunlight?
Absolutely. With a peak brightness of ≥7500 nits and automatic dimming, the message remains crisp and clear even in the brightest conditions.
Q: How is the trailer stabilized on-site?
The trailer is equipped with built-in mechanical stabilizing jacks or legs that are deployed once the unit is positioned, providing a solid and stable base.

For long-term, fixed-site projects: Discover the Trailer-Mounted VMS.

5 Colour Variable Message Sign COLOUR VMS BOARDS:

OceanView Mart's Innovative Promotional Strategy

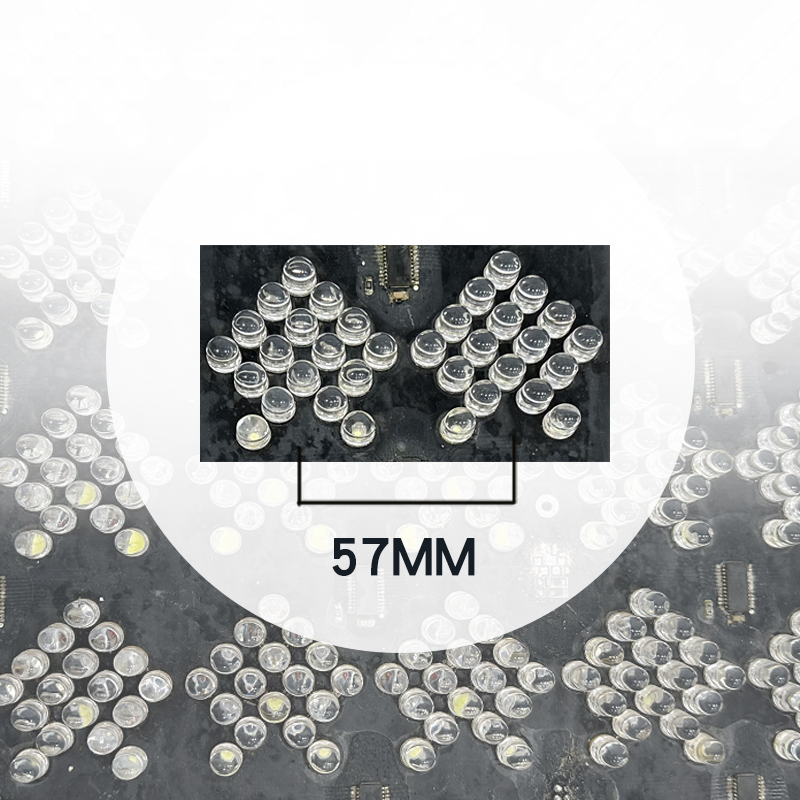

Enhanced Clarity with P57MM Pixel Structure: The Future of Solar VMS Trailers

In the intricate network of urban roads, our Solar VMS Trailers with P57MM pixel structure stand out as an epitome of modern technology, ensuring clarity like never before. Whether it's for guiding through roadworks, alerting about accidents, or directing diversion routes for major events, these trailers have proven indispensable. Moreover, with the rise of dynamic advertising, their potential reaches beyond mere traffic management.

The 5-color LED Display, boasting a distinct P57MM pixel structure, ensures sharp and vibrant displays. Freely programmable, it offers a myriad of text and image combinations, changing alternately to captivate and inform its audience. Elevating the display to the desired height is a breeze, thanks to the hydraulically extendable mast, while its 360-degree rotation capability ensures maximum visibility.

Built for the demands of modern urban environments, stability isn't compromised. The chassis corners are reinforced with extendable manual support legs, ensuring the trailers remain firmly grounded.

In today's digital age, control is paramount. With our intuitive VMS Control internet application, managing the display's content, be it from a PC, tablet, or smartphone, is both straightforward and convenient.

Powered entirely by solar energy, these VMS Trailers are a testament to sustainable innovation. Their eco-friendly design not only reduces carbon footprints but also ensures silent operation, making them perfect for urban placements. And with a weight under 750 Kg, there's no need for a specialized BE (trailer) driving license.

Experience the evolution of road messaging with our Solar VMS Trailers, where technology meets convenience.

Tailored to the diverse applications of VMS

Our offerings encompass dynamic advertisements and real-time traffic information displays. These multifunctional boards demand an array of pitch pixels and display units, ranging from lens-type　displays to full-color options and an assortment of colors including amber, red, yellow, blue, green, and white.
With over a decade of manufacturing prowess.

Han Kun has garnered invaluable insights from thousands of global patrons. It's evident that our success hinges on engaging in thorough consultations regarding the intended application. This deliberation is the bedrock of our ability to engineer optimal solutions and ensure their seamless delivery.
At Han Kun, we understand that your objectives are as unique as your projects. Our commitment is to collaboratively chart the most effective course for your specific needs, translating them into VMS solutions that surpass expectations and carve new dimensions in performance and impact.

Solar System and Display
Solar Panel	38V/500W * 2P mono-crystalline silicon solar panels
Solar panel bracket function	360 degrees free rotation and locking function, electric contraction to adjust the Angle of solar light
Solar Charge System	100A charge manager and AC110V-220V the mains charge management
Battery	Lead-acid valve control battery 12V/500AH * 2P
Battery	Warranty 1 years
Size	2600W*1600H(mm)/customized
Display Color	Full colour/Amber/Five color (redyellowgreenbluewhite)
Brightness	≥8000MCD/ M2
The consumption of energy	≤120W/M2
Pixel Distance	P57
Waterproof	IP55
Chip	Wafer/customized

Trailer
Material	Square steel tube(808040 mm),884cm,channel steel customzied
Color	Amber or orange/customized
Fender	Good radians between wheels and fenders made it stable
Damping spring	Double spring 750505P*2,chassis shockproof protect the display
Wheel	175 / 70R14, bearing 755kg. Maximum speed 100KM / H, maximum load 1.5T
Guide Pulley	Adustable lifting±30cm,load-bearing 300KG/pcs
Trailer Jack	360 degree rotation,height:85cm
Trailer Size	L31502050W2550-3150H(mm) Specifications according to LED screen body
Brake System	Non-brake or with brake or automatic- brake / customized
Screen Rotation	360 degree rotation of the screen, any point lock function / customized
Rear Light Function	The electric brake is used together with the power source, and the turn signal, width indicator and brake light/customized
electric and hydraulic Lifting System	With the electric and hydraulic system, the LED screen can rise and fall at will from 0cm-110cm, and the rising and falling height can stay and fall at will within the range

Han Kun's design idea

1. We have been enriching the signage, design & advertising industry VMS for 18 years.

2. Building stronger brands & generating amazing graphics for you.

3. The connect between designer and client is very strong.

4. Excellent design can fulfill the great dream of users.

Because we design and manufacture our own products, you can be certain that we have dedicated ourselves

completely to perfecting each item down to the tiniest detail.
