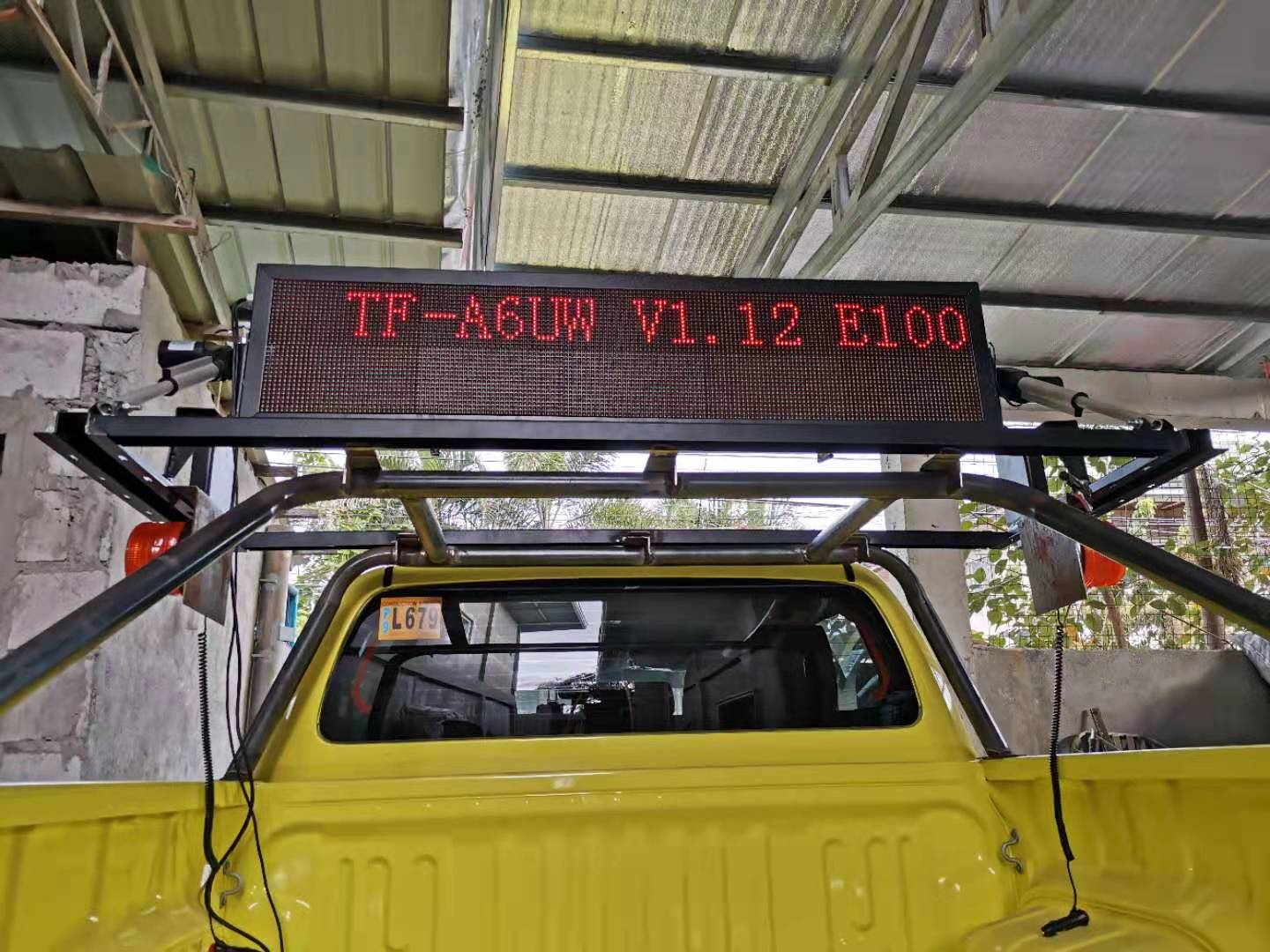

How to install a truck mount full matrix message board on a truck
2025-05-20
Installing a truck mount full matrix message board on a truck involves several key steps to ensure proper functionality and safety. Here is a detailed guide:
1. Preparation
- Gather Tools and Equipment: You'll need basic tools like wrenches, screwdrivers, drill, and electrical testers. Also, ensure you have all the necessary mounting hardware, such as brackets, bolts, and nuts, provided with the message board.
- Inspect the Truck and Message Board: Check the truck's mounting area for any damage, rust, or irregularities. Similarly, thoroughly inspect the message board for any shipping - related damage, loose components, or malfunctioning parts.
2. Mounting the Bracket
- Locate the Mounting Position: Determine the optimal location on the truck for mounting the message board. Common positions include the rear, side, or front of the truck, depending on the intended use and visibility requirements. Ensure that the chosen location doesn't interfere with the truck's operation, doors, or other essential components.
- Install the Bracket: Use the provided brackets to secure them to the truck. If necessary, drill holes in the truck's body at the marked positions for the bracket. Make sure the brackets are firmly attached and level, as an uneven installation can affect the message board's stability and display quality. Tighten the bolts and nuts securely, but be careful not to over - tighten and damage the truck's body or the bracket.
3. Attaching the Message Board
- Lift and Position the Board: With the help of an assistant, carefully lift the full matrix message board and position it onto the installed brackets. Align the holes on the message board with the holes on the brackets.
- Secure the Message Board: Insert the appropriate bolts through the aligned holes and fasten them with nuts. Use a wrench or socket set to tighten the bolts evenly, ensuring the message board is firmly attached to the brackets. Double - check the stability of the message board by gently shaking it to make sure there is no movement or wobbling.
4. Electrical Connection
- Identify Power Source: Locate a suitable power source on the truck. This could be the truck's battery or an existing electrical circuit that can supply the required power for the message board.
- Connect the Wires: Follow the manufacturer's wiring diagram to connect the message board's power cables to the truck's electrical system. Make sure to use proper wire connectors and insulation to prevent electrical shorts or loose connections. Ground the message board properly to ensure electrical safety. Test the electrical connection by turning on the truck's power and checking if the message board powers on and functions correctly.
5. Final Checks and Adjustments
- Inspect the Installation: Thoroughly check all the connections, bolts, and wires to ensure everything is secure and properly installed. Look for any signs of damage or loose components.
- Adjust the Display: If necessary, adjust the message board's angle and position for optimal visibility. Use a level to ensure the board is perfectly horizontal or vertical, depending on the design. Also, test the display's functions, such as message scrolling, brightness adjustment, and color display, to ensure everything works as expected.
Are there any specific requirements for the truck's power system when installing this message board?
Yes, there are several specific requirements for the truck's power system when installing a truck mount full matrix message board:
1. Voltage Compatibility
- Match the Voltage: The truck's power system voltage must match the input voltage requirements of the message board. Most message boards are designed to work with common vehicle voltages, such as 12V or 24V DC. Ensure that the truck's battery and electrical system can supply the correct voltage to power the message board without over - voltage or under - voltage issues, which can damage the message board or cause it to malfunction.
2. Power Capacity
- Sufficient Current Supply: The message board will have a specified power consumption rating, usually measured in watts or amps. The truck's power system, including the battery and alternator, must be able to supply enough current to meet the message board's power requirements. A weak or insufficient power source may cause the message board to flicker, dim, or not function properly. Calculate the total power draw of the message board and ensure that the truck's electrical system can handle this additional load without affecting the normal operation of other vehicle systems, such as the engine, lights, and electronics.
3. Electrical Protection
- Fuse and Circuit Breakers: Install appropriate fuses or circuit breakers in the electrical connection between the truck's power system and the message board. These protective devices will prevent electrical overloads, short circuits, and surges from damaging the message board or the truck's electrical system. Select fuses or circuit breakers with the correct amperage rating based on the message board's power requirements.
- Electrical Isolation: Ensure proper electrical isolation between the message board and the truck's electrical system to prevent electrical interference. Use insulated wires, connectors, and mounting hardware to minimize the risk of electrical shorts or interference with other vehicle electronics.
4. Battery Considerations
- Battery Health: A healthy battery is essential for reliable operation of the message board. Regularly check the truck's battery for proper charging, electrolyte levels (if applicable), and terminal connections. A weak or failing battery may not be able to supply the necessary power to the message board, especially during extended periods of use or in cold weather conditions. Consider upgrading to a higher - capacity battery if the message board's power requirements are significant.
- Power Management: Some message boards may have power - saving features or require specific power - management settings. Familiarize yourself with these features and ensure that the truck's power system can support them. For example, some message boards may have a low - voltage shutdown feature to protect the battery from excessive discharge. Make sure this feature works correctly and doesn't interfere with the normal operation of the truck or the message board.
