Truck - Mount Full Matrix Message Board-Variable Message Signs
New truck-mount variable message signs feature a full LED matrix for dynamic messaging from moving or parked vehicles ideal for real-time traffic control and safety communication.
Advanced Display Technology
High-Efficiency LEDs: Engineered for low energy consumption, superior brightness, and clear legibility in all conditions, supporting text, graphics, or combined content.
Preprogrammed Flexibility: Includes bold arrow patterns, hazard symbols, and custom messages for instant deployment—no complex programming needed.
Smart Tilt-Frame Design

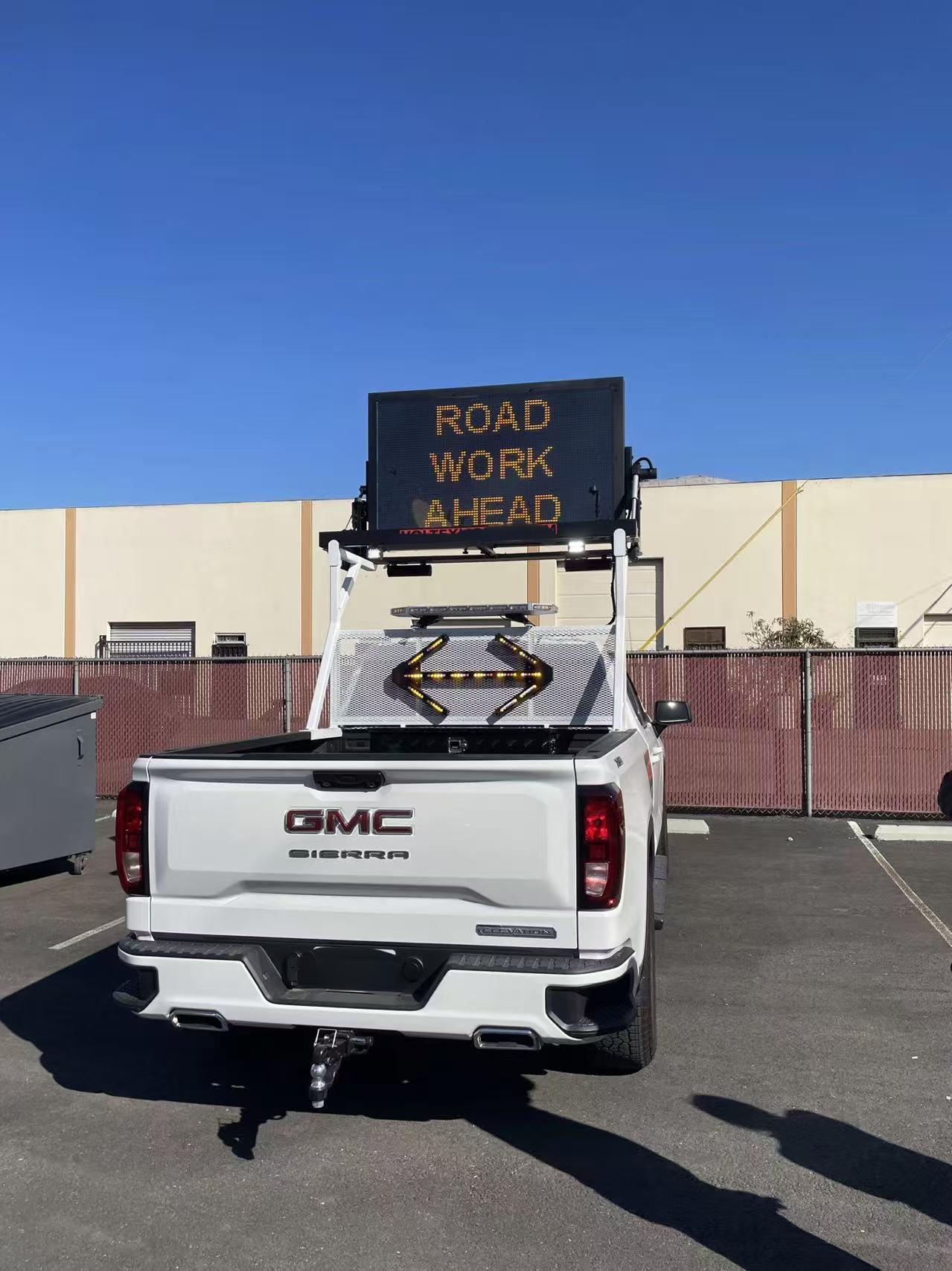

Electric Actuator Control: Operate the low-profile tilt-frame from inside the vehicle. Raise to vertical for full-message display (visibility up to 500m) or lower to horizontal (12-inch height) for easy transit.
Convoy-Ready Mobility: Maintain full messaging capability while moving, matching the clarity of stationary trailer or overhead signs for seamless traffic management.
Truck - Mount Full Matrix Message Board-Variable Message Signs

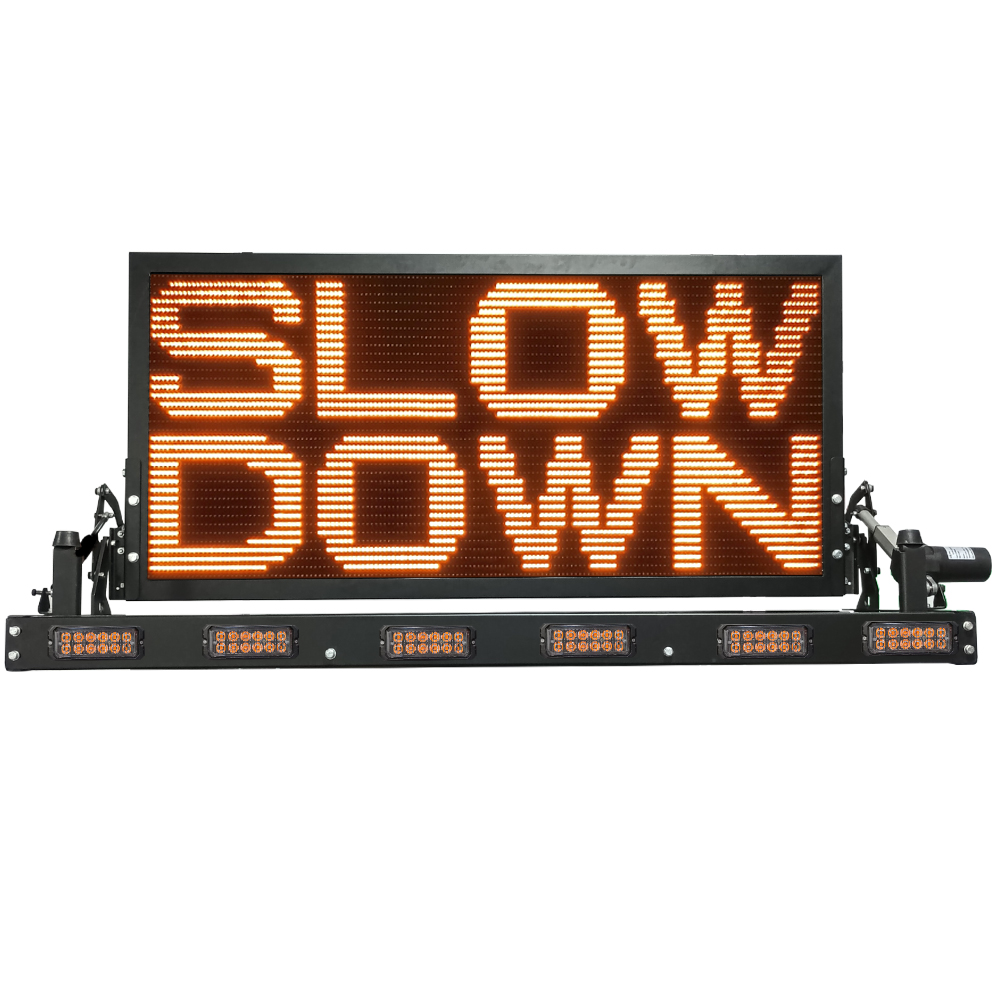

Han-Kun Truck-Mount Full Matrix VMS (HK-CMS/7242)
Superior Traffic Communication, Wherever Your Vehicle Goes
The Han-Kun Truck mount full matrix message board is the ultimate Variable Message Sign (VMS) solution for mobile operations.
Engineered for versatility and durability, it delivers high-impact, customizable messages directly from your vehicle, ensuring critical information is seen in any condition.
Whether for traffic management, roadside assistance, or incident response, this vehicle-mounted VMS provides an efficient and flexible display for all your communication needs.
Equipped with an electric tilt-frame for easy deployment and a robust IP65 waterproof design, it is built to perform reliably on the toughest job sites.
Message boards vehicle mounted Key Features & Benefits:
Achieve maximum legibility day or night. Our full-matrix LED display clearly shows text, graphics, and super-bold arrow patterns with high intensity and minimal energy consumption.
Operate the sign with unparalleled ease. Choose from the included 7-inch color touchscreen controller, a wireless remote, or a mobile app for on-site or remote management.
The integrated electric actuator allows the sign to be safely raised and lowered from the cab. This key feature enables optimal positioning and protects the sign during transit.

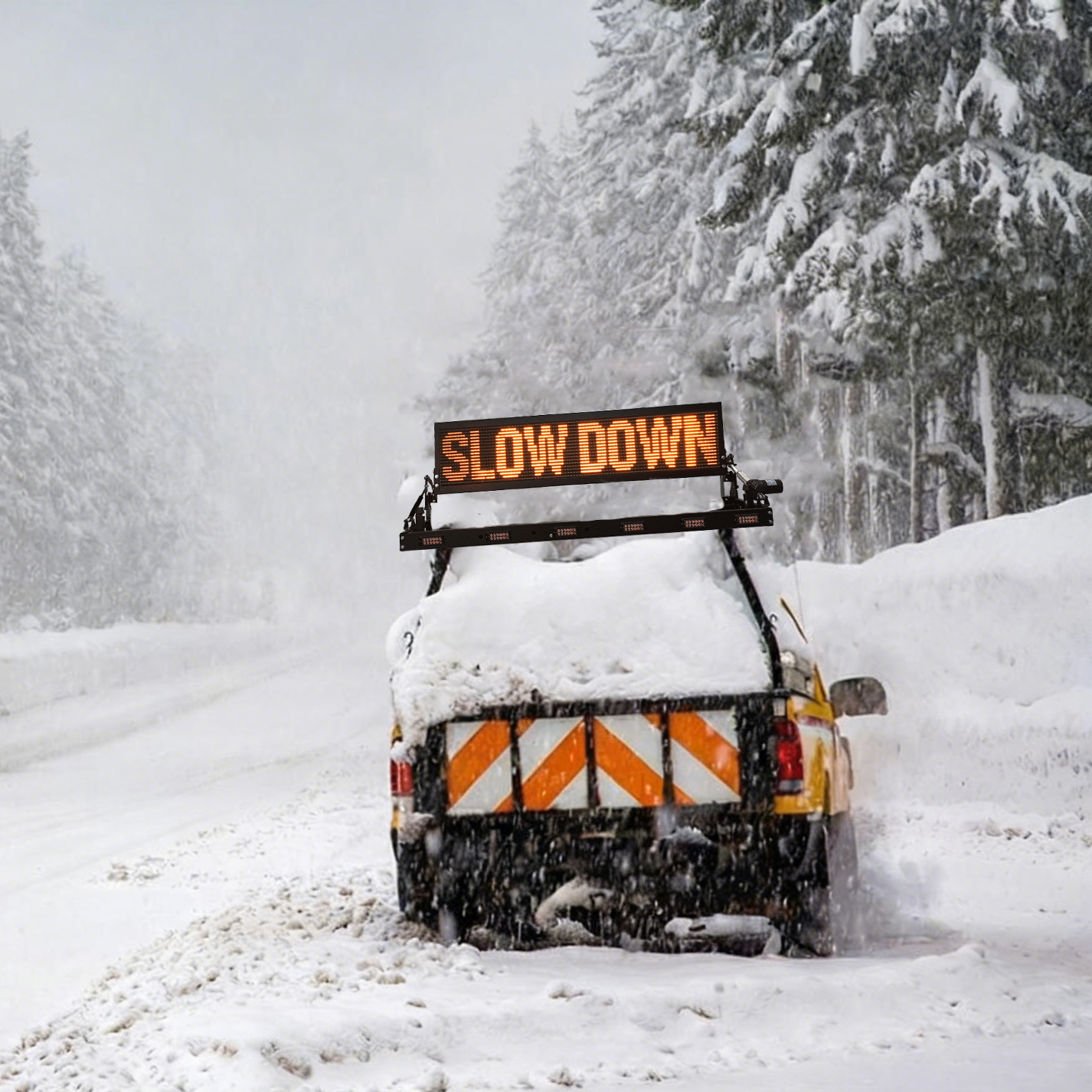

With an IP65 waterproof rating, shock-resistant construction, and integrated cooling fans, this sign is built to endure harsh environments and ensure continuous operation.
Features like an auto-dimming light sensor and low power consumption make it highly efficient, running directly from your vehicle's 12V/24V DC power system.
Technical Specifications
| Category | Specifications |
|---|---|
| Display | Type: Full Matrix Amber LED Pixel Configuration: 72 (W) × 42 (H) Display Size: 1512mm x 864mm Content: Text, Graphics, Preprogrammed Bold Arrows |
| Control & Interface | Primary Controller: 7-inch Color Touchscreen Control Methods: Wired Controller, Wireless Remote, Mobile App Customization: Unlimited display frames, customizable fonts & sizes |
| Power & Compliance | Operating Voltage: 12V / 24V DC Certification: Electro Magnetic Compatibility (EMC) Certified |
| Durability & Maintenance | Weatherproof Rating: IP65 (Dust-tight & Water-resistant) Warranty: 2-Year Quality Guarantee Design: Modular for easy maintenance |
| Physical Function | Mounting: Electric Tilt-Frame (Raises/Lowers Sign) Net Weight: Approximately 60 kg |
Optional Features & Accessories
Enhance your Truck-Mount VMS capabilities with our range of optional features:
Wireless Tablet for advanced on-site control.
Radar System Integration for speed display and alerts.
Customizable Frame Designs and additional warning lights (Amber, Red/Blue)
Why Choose Han-Kun VMS?
Han-Kun Portable Changeable Message Signs are designed with the user in mind. We focus on easy installation, low maintenance, and robust performance to provide a solution that saves time, reduces costs, and most importantly, enhances safety on the road. Our 2-year warranty and free software updates guarantee long-term value and support.
Ideal for: Traffic Control Companies, Roadside Assistance Fleets, Highway Maintenance Crews, Emergency Response Teams, and Construction Utilities.
