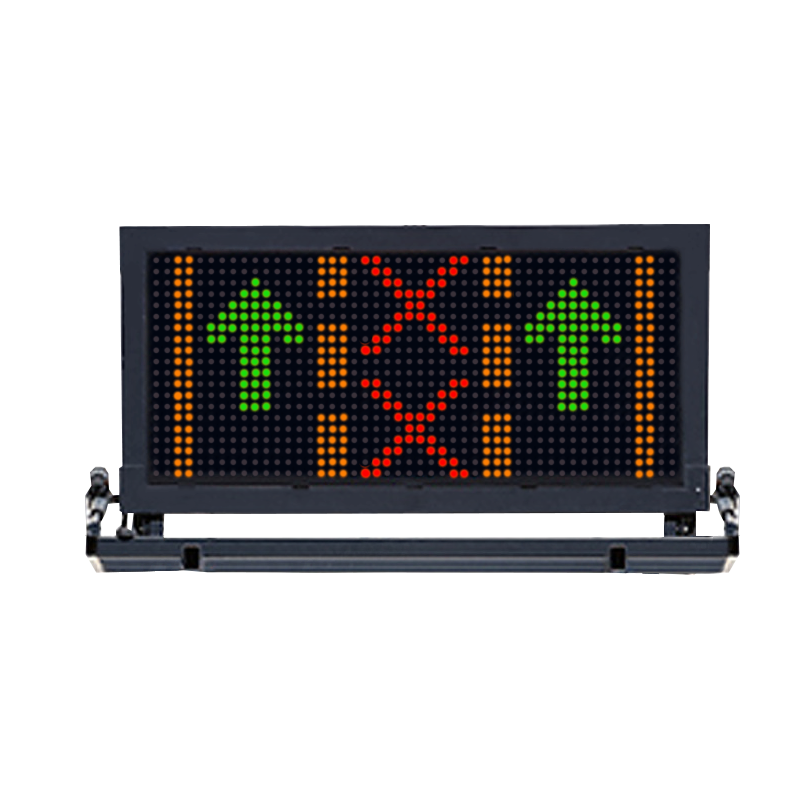

5-Color Electric Foldable VMS Board Truck-Mounted Changeable Message Sign
Control remotely via mobile app up to 200m range. Stainless steel hardware, Dulux low-glare matte black finish, dual weather seals
12-month warranty included. Ideal for flexible, high-visibility messaging in dynamic environments.
5-Color Electric Foldable VMS Board Truck-Mounted Changeable Message Sign
Key Features & Benefits
Vibrant 5-Color Display: Command attention with a full-color LED display capable of showing text, graphics, and compliant symbols in multiple high-visibility colors, improving comprehension and driver response.
Portable & Easy to Deploy: Designed as truly portable changeable message signs, they feature a robust electric tilt-frame for easy raising and lowering, enabling fast setup and integration on trailers or vehicle roofs.
Intelligent Touchscreen Control: Operate the sign effortlessly using the integrated 7-inch color touchscreen controller. Program messages, select pre-loaded graphics (including MUTCD-standard bold arrows), or adjust settings with a simple touch.
Rugged and Reliable Design: Built to withstand outdoor job site conditions, the sign is housed in a durable frame and operates directly from a standard vehicle alternator (12V/24V), ensuring dependable performance.
Technical Specifications
| Category | Specification |
|---|---|
| Display | Type: 5-Color LED Matrix Viewable Area: 1360 mm x 788 mm Pixel Resolution: 48 (W) × 28 (H) Content: Text, Custom Graphics, MUTCD-compliant Symbols & Arrows |
| Physical Dimensions | Overall Frame Size: 1630 mm x 990 mm |
| Control & Interface | Primary Controller: 7-inch Color Touchscreen Control Options: On-board Controller, Optional Wireless Remote or Mobile App |
| Power & Operation | Power Source: Vehicle Alternator (12V/24V DC) Mounting Function: Electric Actuator for Tilt-Frame (Raise/Lower) |
| Compliance | Graphics and arrows meet MUTCD (Manual on Uniform Traffic Control Devices) standards for recognition and safety. |
Ideal For:
Construction zone traffic management, emergency detour routing, special event parking direction, mobile work crew safety, and variable speed zone alerts.
Portable Traffic Message Signs and Portable Changeable Message Signs
LED Portable Traffic Message Signs and Portable Changeable Message Signs Displays: Customizable for Your Needs
Multi-pixel pitch options; full color, 5-color, or monochrome; rectangular/square designs. Tailored to your vehicle model and purpose—we deliver the best
Portable Traffic Message Signs and Portable Changeable Message Signs fit.
- Truck Mounted Traffic Control VMS boardHK-TVMS-9618Truck-Mounted VMS Board: Purpose-Built for Global Safety Operations Engineered for critical roles in roadside assistance, traffic control, and incident management worldwide, this fully-assembled VMS board delivers high-impact safety communication where it's needed most. Its large format and robust design ensure clear guidance and enhanced protection in hazardous zones. Integrated Specification & Advantage Summary: Large-Area, High-Visibility Alert: The (1728 x 324mm) display area, equipped with a 96x18 pixel, amber LED array, provides superior clarity and long-distance recognition for dynamic messages and signs, effective in all conditions. Rugged & Waterproof Construction: Built with a full all-carbon steel panel and main frame, the unit is sealed for total weatherproof protection. Combined with a weight of 60kg, it offers a durable and stable solution for demanding mobile use. Instant Wireless Command & Control: Manage the board effortlessly from the vehicle cab using the included wireless remote and mobile app, enabling rapid deployment and real-time message updates in time-sensitive situations.HK-TVMS-9618Send Inquiry
- Truck-Mount VMS Full-Matrix Variable Message SignVehicle-Mounted Variable Message Signs (VMS) Han Kun's Vehicle-Mounted VMS, specially adapted for pickup trucks and rescue vehicles, delivers highly flexible forward traffic information dissemination. Featuring electric folding for easy storage and quick activation, it suits diverse road conditions, effectively managing traffic and issuing safety alerts to enhance information accessibility for road users.HK-SMC-8036Send Inquiry
- Truck - Mount Full Matrix Message Board-Variable Message SignsHANKUN Truck-Mount Variable Message Signs New truck-mount variable message signs feature a full LED matrix for dynamic messaging from moving or parked vehicles ideal for real-time traffic control and safety communication. Advanced Display Technology High-Efficiency LEDs: Engineered for low energy consumption, superior brightness, and clear legibility in all conditions, supporting text, graphics, or combined content. Preprogrammed Flexibility: Includes bold arrow patterns, hazard symbols, and custom messages for instant deployment—no complex programming needed. Smart Tilt-Frame Design Electric Actuator Control: Operate the low-profile tilt-frame from inside the vehicle. Raise to vertical for full-message display (visibility up to 500m) or lower to horizontal (12-inch height) for easy transit. Convoy-Ready Mobility: Maintain full messaging capability while moving, matching the clarity of stationary trailer or overhead signs for seamless traffic management.HK-CMS/7242Send Inquiry
