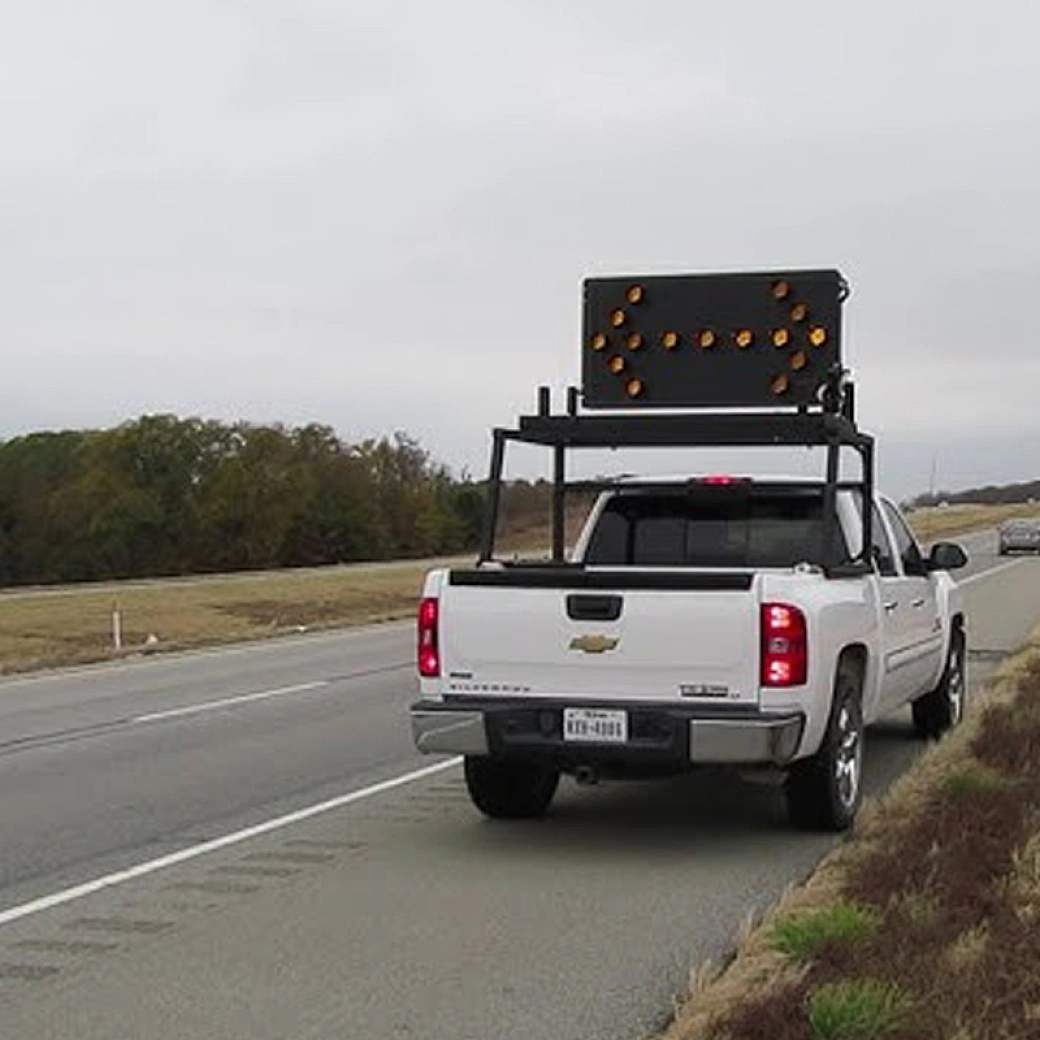

Truck Mount Arrow Boards

HK-TMAM15

Arrow Board Trailer 15 & 25 Light Models Car folding trailer.
Arrow Boards manufactured by Han Kun meet the design:
requirements of Australia, North America, Europe,Middle East and other countries.
Hankun Folding Arrow Board Trailers features a display panel that pivots up to the vertical position when deployed,and down to the horizontal position for transport.The display is held in place with a single support for ease of use.
Trailer Mount Directional Arrow Board can be used for roadwork as well as construction areas where traffic needs to be diverted.

They provide a safer work area for the workers as well as reducing traffic congestion.

We can offer a wide range of sizes as well as one or two sided displays, ideal for a wide range of applications ranging from long - term lane closures to workplaces,buildings,infrastructure and mining sites with changing traffic management conditions.

Quantity:

Buy Now

Contact Now

add to cart

HANKUN Vehicle-Mounted Arrow Boards: Dynamic Traffic Management Solutions

Streamline traffic control in construction zones and emergency areas with HANKUN’s Vehicle-Mounted Arrow Boards. Engineered for mobility and reliability, these boards are the ideal choice for projects requiring on-the-go traffic signaling, whether mounted on trucks, trailers, or other vehicles.

Key Features

Versatile Sizing Options: Available in three dimensions 48"X 24", 60"X 30", and 72"X 36"to suit different traffic management needs.

Robust & Lightweight Design: Constructed from all-weather aluminum, these Truck Mount Arrow Boards are durable yet easy to deploy. A spring-loaded locking device ensures stability in both travel and display positions.
Intelligent Lighting: Incorporates a “non-blinding,” minimum glare electro-optical design, complemented by a solid-state controller with photocell dimming for reduced nighttime glare.

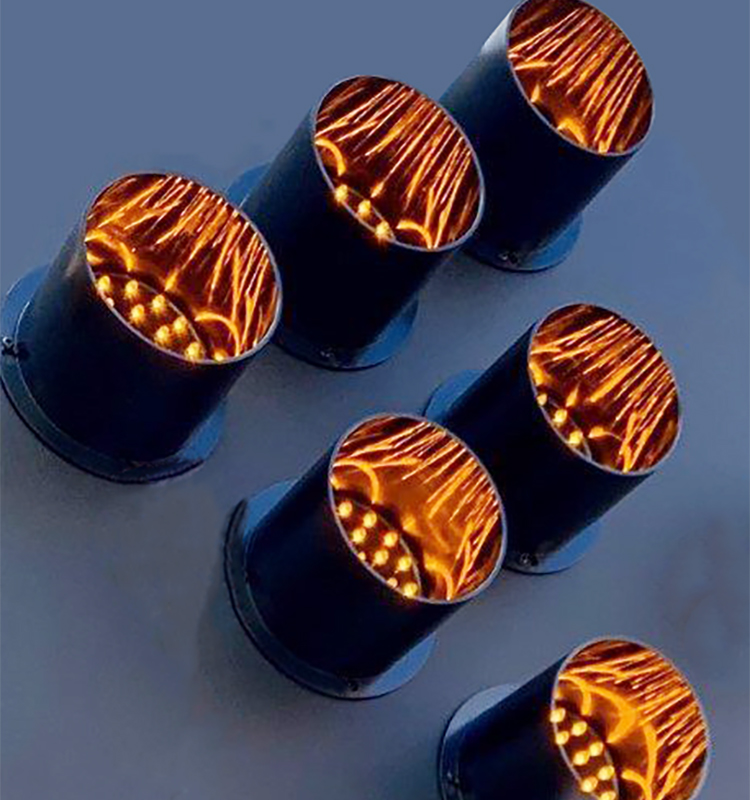

Advanced Operation Modes: Select from power-actuated lift models, PAR 36 or 46 LED lamps, and optional wireless, handheld controllers for seamless operation.
Regulatory Compliance: NTCIP-compliant and meets MUTCD requirements, ensuring safety and legality in North American applications.

Model Specifications

Model Size	Operating Temp.	Shipping Weight	Lamp Options	Frame Details	Power System	Controller Modes
48"X 24"	67°F – 212°F	125 lbs	15 lamps only	Black powder coat, 3"x2"square steel tubing with 2"x2"support frame	12V vehicle power	7 modes
60"X 30"	67°F – 212°F	120 lbs	15 or 25 lamps	Black powder coat, 3"x2"square steel tubing with 2"x2"support frame	12V vehicle power	7 modes (15 light), 10 modes (25 light)
72"X 36"	67°F – 212°F	140 lbs	15 or 25 lamps	Black powder coat, 3"x2"square steel tubing with 2"x2"support frame	12V vehicle power	7 modes (15 light), 10 modes (25 light)

Mounting Flexibility

Bed Rail Mount: Allows direct mounting to the vehicle bed rail, with a bracket option to avoid drilling into the truck bed. Custom sizes are also available.
Bed Mount: Mounts directly to the vehicle bed for a secure, stable setup.

HANKUN Motorized Multi-Level Arrow Board Trailers

Enhance traffic management further with our Motorized Multi-Level Arrow board trailers. These trailers feature a display panel that pivots vertically for deployment and horizontally for transport, secured with a single support for easy operation.

Ideal for Diverse Applications: Perfect for roadwork, construction sites, and any area where traffic diversion is needed, providing a safer work environment and reducing congestion.
Customizable Options: Offer a wide range of sizes and one or two-sided displays, suitable for long-term lane closures, infrastructure projects, mining sites, and more.
Global Compliance: Designed to meet the requirements of Australia, North America, Europe, the Middle East, and other countries, ensuring suitability for international projects.

HANKUN’s arrow board solutions combine cutting-edge technology, robust construction, and versatile functionality to deliver effective traffic control in any scenario.

Motorized Multi-Level Arrow board EASY TO OPERATE

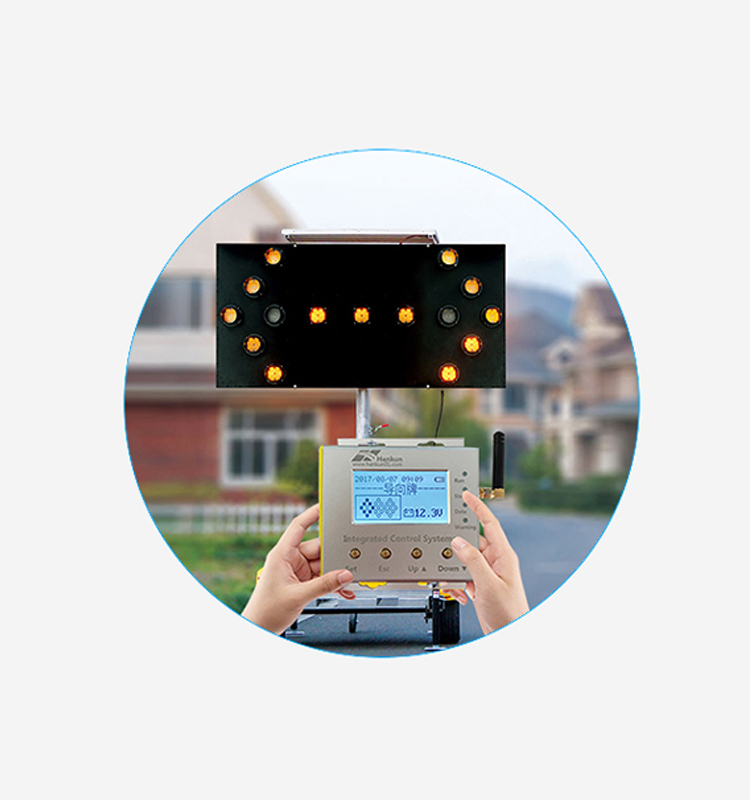

Light Sensor (Auto dimming system). Selection of arrow display patterns.Handheld controller, wireless connection.

Truck Mount Arrow Boards

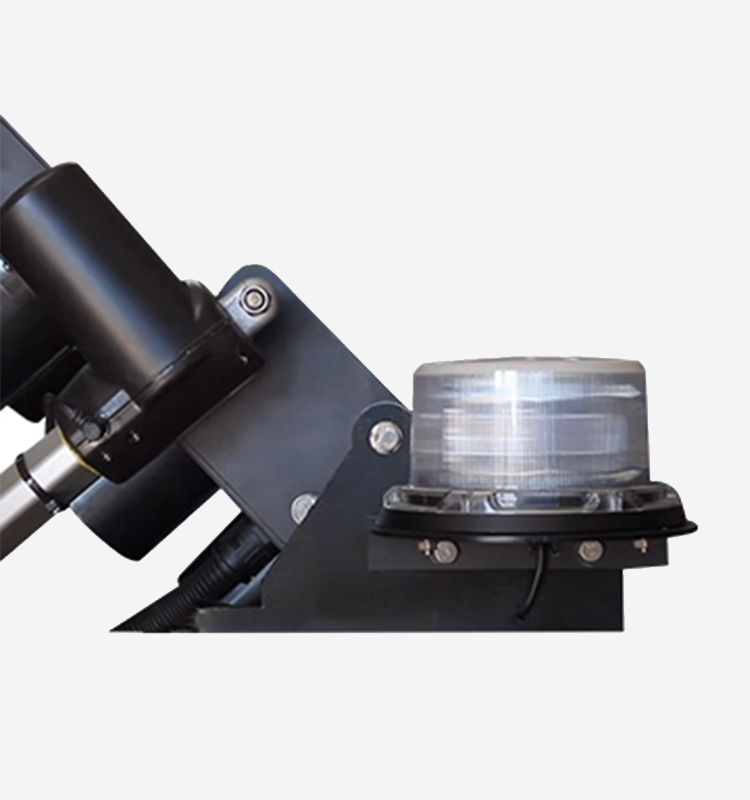

12V/24V ELECTRIC DRIVE

Rack material Galvanised Steel. Motor:Electric Actuator. For 24 Volt application at 12 amp,voltage reducer is required. Safety feature-controller has automatic rasing and lowering sequence when the board is turned on and off. Actuators have built in limit switch for up and down position. Accessories:work lights,beacons added into the same controller,making your installation easy and simple for your traffic controllers to operate.

Custom Vehicle-Mounted Arrow Boards with Motorized Precision

HANKUN designs Vehicle-Mounted Arrow Boards and Truck Mount Arrow Boards with modular specs—integrating full-matrix displays via electric tilt frames for rooftop cab mounting. Our Motorized Multi-Level Arrow board systems offer 10+ programmable arrow patterns, controlled by in-cab units, APP, or manual controllers—including 90° folding drive for easy transit.

Tailored to Your Vehicle

Dual-Mount Flexibility:
Securely fit Vehicle-Mounted Arrow Boards or heavy-duty Truck Mount Arrow Boards via electric tilt frames, adapting to cars, trucks, or utility vehicles.
Smart Control & Fold:
Three control options (APP/in-cab/manual) adjust patterns on the fly; 90° motorized folding streamlines deployment and storage.
Scalable Specs:
Choose matrix sizes to match vehicle models—compact for cars, full-width for trucks—built for vibration resistance and road durability.

HANKUN’s Truck Mount Arrow Boards and Vehicle-Mounted Arrow Boards blend motorized precision with customizable design, ideal for real-time traffic control. The Motorized Multi-Level Arrow board’s 90° fold ensures efficiency, making it perfect for fleets and emergency response.
