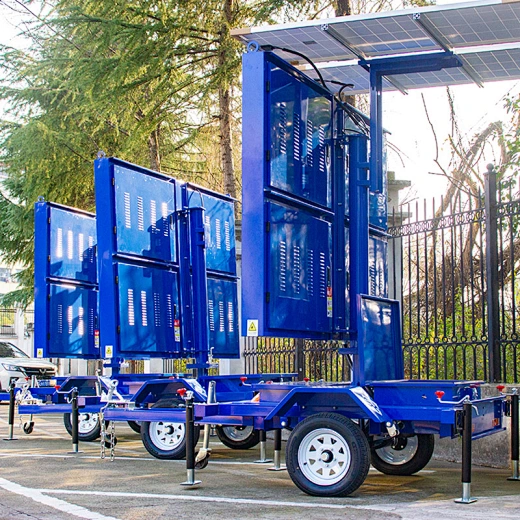

Solar VMS Trailer with 5 color LED display
HK-VMS/37.5 A
HAN KUN A Silent Messenger
Full-Sized Message Board
Our's the largest sign- P37.5 pixel spacing are our superstar products.
Our signs have a superior method of informing and warning drivers of any potential danger, delays and traffic queues. Helping to minimising risk, these signs are the useful additions to any highway maintenance team.
Our production base is in Yiwu,China
We have produced more than 30,000 units variable information signs for global users and ship them to the cities where you want to reach through Ningbo Port, Shanghai Port,and Shenzhen Port by sea.
You have any purchase
Bidding or others need consultations,Pls Leave us a message or agree to a common time through the web link below .
To start the video conference!
Full-Sized Message Board
Our's the largest sign- P37.5 pixel spacing are our superstar products.
Our signs have a superior method of informing and warning drivers of any potential danger, delays and traffic queues. Helping to minimising risk, these signs are the useful additions to any highway maintenance team.
Our production base is in Yiwu,China
We have produced more than 30,000 units variable information signs for global users and ship them to the cities where you want to reach through Ningbo Port, Shanghai Port,and Shenzhen Port by sea.
You have any purchase
Bidding or others need consultations,Pls Leave us a message or agree to a common time through the web link below .
To start the video conference!
Quantity:
Contact Now
add to cart
TRAILER ACCESSORIES USING GLOBAL STANDARDS

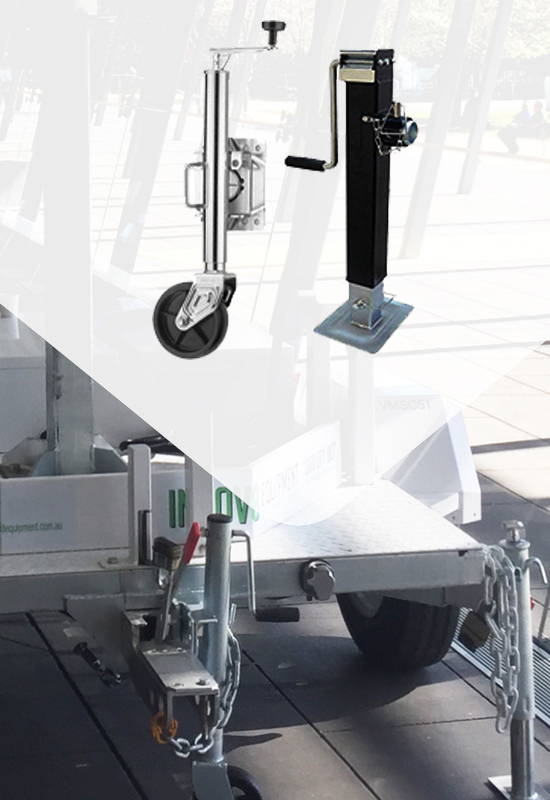

TRAILER JACK
Max Payload:12000b Swivel Square Jack Galvanized/Black
Max Payload:12000b Swivel Square Jack Galvanized/Black

CONNECTOR TRAILER JOINT
Crash Brake Connector for Trailer with Braking Function Max Payload: 2000kg
Crash Brake Connector for Trailer with Braking Function Max Payload: 2000kg

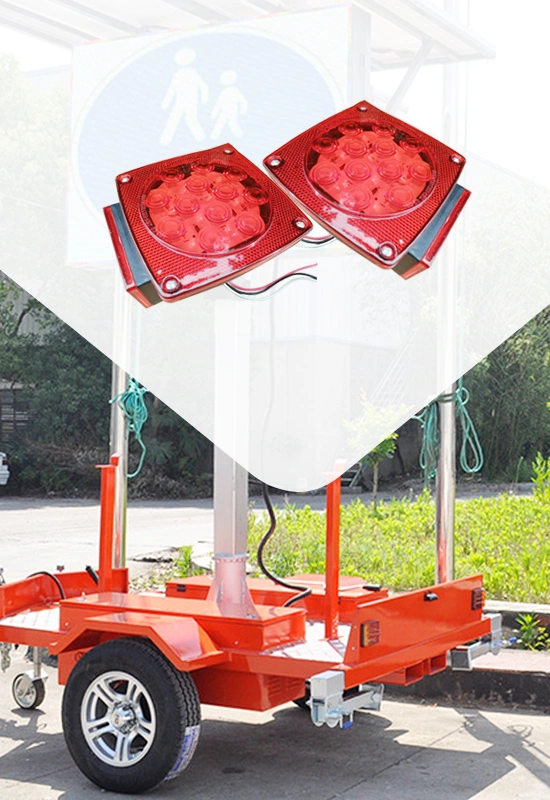

THE LED TRAILER LIGHT
Kit includes: tail、 turn signal lights、 2 amber LED marker lights and license plate bracket

The benefits of purchasing our VMS are as follows
1.The sliding message attracted 7 times the attention
2.Allows you to schedule different messages throughout the day
3.Advertise products and services while broadcasting other important information about your business
4.The sign is removable, so it can be placed where it will bring you the most benefit
5.Smart telescopic rods take up less space
6.360 degree rotation, moving signs follow traffic
7.Solar powered, working all day and night_no electricity needed
8.The trailer specifications we manufacture and comply with the regulations and certifications of various countries,
9.Suitable for a variety of purposes of rectangular LED display and different pixel pitch
10.When you have difficulty choosing, please tell me the purpose of your VMS!

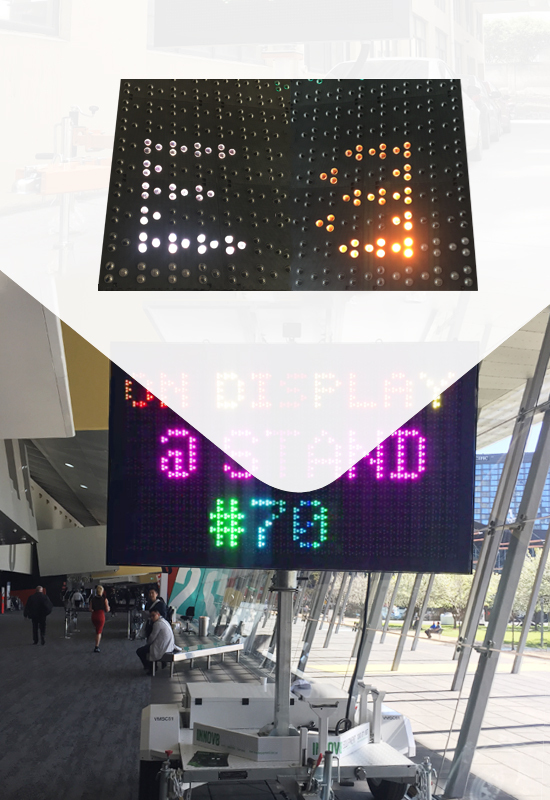

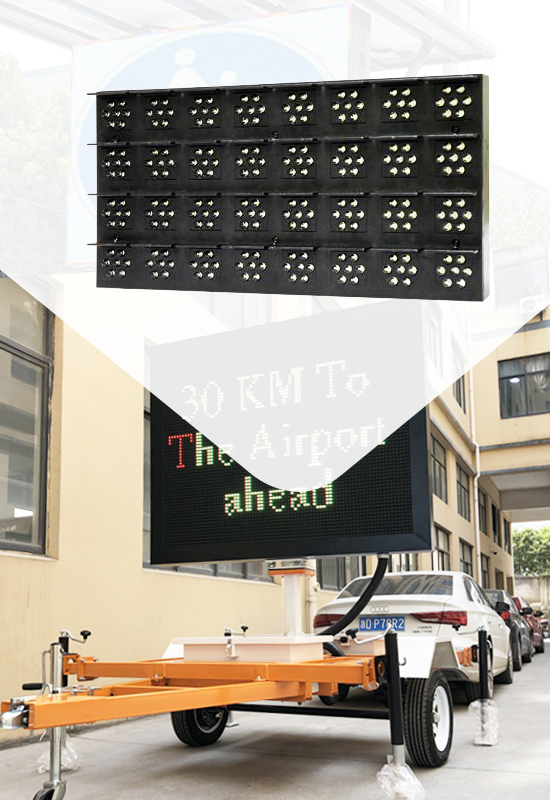

HIGH-QUALITY LED DISPLAY MODULES HAVE GOOD "VISUAL" FUNCTIONS
Energy Saving Is The Core
EN12966 、 LED modules
-----Optical lens design

-----Full color

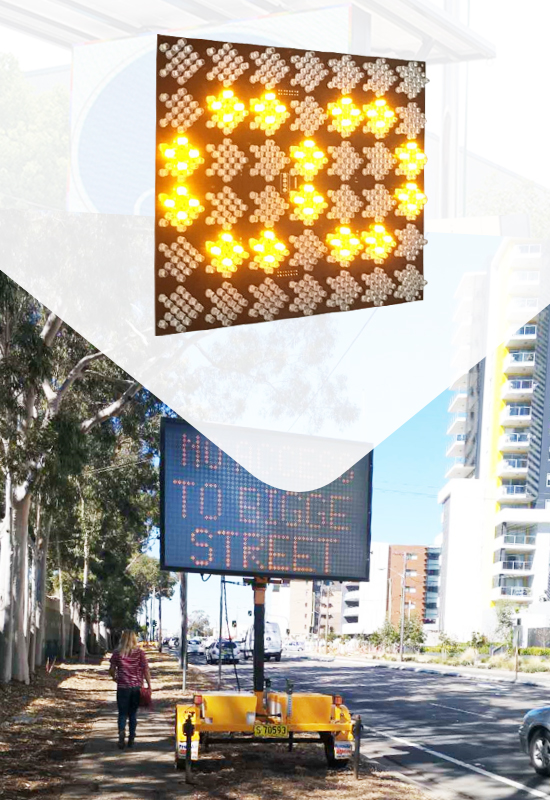

Amber 、5 colors (red yellow blue green white)

Tailored to the diverse applications of VMS,
our offerings encompass dynamic advertisements and real-time traffic information displays. These multifunctional boards demand an array of pitch pixels and display units, ranging from lens-type displays to full-color options and an assortment of colors including amber, red, yellow, blue, green, and white.
With over a decade of manufacturing prowess,
With over a decade of manufacturing prowess,
Han Kun has garnered invaluable insights from thousands of global patrons. It's evident that our success hinges on engaging in thorough consultations regarding the intended application. This deliberation is the bedrock of our ability to engineer optimal solutions and ensure their seamless delivery.
At Han Kun, we understand that your objectives are as unique as your projects. Our commitment is to collaboratively chart the most effective course for your specific needs, translating them into VMS solutions that surpass expectations and carve new dimensions in performance and impact.
At Han Kun, we understand that your objectives are as unique as your projects. Our commitment is to collaboratively chart the most effective course for your specific needs, translating them into VMS solutions that surpass expectations and carve new dimensions in performance and impact.
OUR COMPETENCESmart Mobility Solutions
For 4G or 5G, we use the most cutting-edge IoT cloud platform technology to control equipment, including geographic location GPS, equipment status, whether it is leased or commercial, Han Kun is developed for your application!

We Offer Multi-Modal Transportation Management for a Connected World.
Han Kun's design idea
1. We have been enriching the signage, design & advertising industry VMS for 15 years.
2. Building stronger brands & generating amazing graphics for you.
3. The connect between designer and client is very strong.
4. Excellent design can fulfill the great dream of users.
Because we design and manufacture our own products, you can be certain that we have dedicated ourselves completely to perfecting each item down to the tiniest detail.



Why not let us design a VMS that can bring you profit?
We look forward to working with you, we are a group of engineers who like to design.
TO | |||
晗琨VMS HK-VMS9-太阳能拖车显示屏 基本参数规格说明书 | |||
车体 | 1.车体钢材 | 方钢管(80*80*4MM),8*8*4MM槽钢 | |
2.车体颜色与外面处理 | 黄色 | ||
3.挡泥板 | 轮与挡泥板有很好的弧度,稳定性能很好 | ||
4.减震簧 | 双弹簧750*70*5/pcs*2、底盘可防震,可以有效保护好显示屏 | ||
5.轮胎 | 175/70R13,承重 675kg 。最大速度100KM/H,最大承重1.5T | ||
7. 导向轮子 | 可以调节升降30CM, 承重 300KG /PCS | ||
8. 拖车升降千斤顶 | 360度词节旋转固定插梢安装,55CM高度,张开高度85CM,手柄旋转升降调节车体支撑的高度 | ||
9.车体规格 | 长315*宽205 *离地高55车*桅杆高170-260CM | 含拖车杆长度,宽度到挡泥板边,离地高度55CM(可升降35MM),规格根据LED屏体稍有变动 | |
10.、制动系统 | 手制动 | ||
11.屏体旋转 | 360度旋转屏体,任意点锁定功能 | ||
12.车尾灯功能 | 车尾灯功能,与电动制动系统与动力车配合使用,转向灯、示宽灯、刹车灯 | ||
13.车体是否带反光膜 | 客户自定 | ||
12.电动/液压升降系统 | LED屏随电动加液压系统可任意升降80CM-100CM,升降高度在范围内任意停留与下降;配备DC24V0.75kw-01-4l液压单元一组,一组12V电磁阀,热量,1.0CC,压力,5MPA。 | ||
13、牵引杆 | 牵引杆标配120CM长,配牵引罩与球头 | ||
14、车轴 | 手动刹车,5-114.3 1585MM 分布,5CM实心钢材 | ||
15、车自重量 | 整车设备重量600KG-750KG | ||
16、拖车限速值 | 最大牵引车速度70KM/H,视路面情况;搞风小于7级,与显示屏规格有y太阳能板面积有所变动。 | ||
太阳能供电与蓄电系统 | 1、太阳能板支架功能 | 360度自由转动及锁定功能,电动收缩调节太阳光照角度 36V/250W/P*4P, 单晶材质 |
|
2. 太阳能板 | |||
3.太阳能充电管理器 | 60A充电管理器,及110V-220V充电管理二用可逆变输出反向220V | ||
4.蓄电池 磷酸铁锂 | 磷酸铁锂24V250AH*2P 使用寿命10年n 长循环寿命和6000次循环, n 磷酸铁锂高稳定性电池,热量失控,无火灾 n 多层BMS系统逐层保证锂电池的可靠性 n 高效预警,超温预警报告,确保安全 有效率的 n 高能量密度,与铅酸相比节省70%的占地面积智能电池管理系统节省80%的日常 运营和维护成本 n 易于安装,且可根据负载可选取不同容量250Ah为模数化基数 n 容量扩展简单智能均压控制 |
||
L E D显示屏 | LED屏体规格 | 2600*1600MM*150MM(显示规格2520MM*1575MM) | |
LED透镜防反透模组 | 产品参数 产品名称 P9前维护户外透镜4S 32*32 光学 特性 LED封装PC透镜方式 SMD 3 in 1(SMDPC透镜2727) 亮度 ≥8000 CD/㎡ 像素点间距 9 mm 像素密度 10000 Dots/㎡ 像素构成 1R1G1B 单元板分辨率 31.5*31.5 Dots 驱动方式以及IC 1/4s,constant current. 最佳可视距离 10m-1000m 物理 特性 单元板尺寸(长*宽) 318*318 (mm) 单元板重量 1330±10g 单元板平整度 ≤0.2 mm 电学 特性 输入电压(直流) 4.5V 最大电流 9A(典型值)① 模组功率 40W(典型值)② 平均无故障时间 ≥1万小时 防投光反上功能(发光角度只对左右向下,不对上投光功能,防飞机器信号识别) 使用寿命 ≥6万小时 使用 环境 使用环境 户外 工作温度范围 -20至70℃ 工作湿度范围 10%-80%RH无凝露 接口 HUB75 2 G1 N G2 N B D L N 16 1 R1 B1 R2 B2 A C S O 15 |
||
亮度 | 大于10000CD/㎡ | ||
最大耗能量 | ≦290W/㎡ | ||
像素间距 | P9 | ||
显示屏外框 | 有边框防水箱体 | ||
防水等级 | IP 55 | ||
软件 | wife | 手机APP上传节目与编节目,小视频,动画,文案,标识, | |
设备管理GPS | 全球5G定位系统,防偷,位置信息,活动路线,数据报价,电子围栏等全功能,手机可查 | ||
可视化管理设备地点的周边环境或发生最后事故回放等功能,360度可转动! |
