Solar full colour trailer mounted mobile led screen
HK-MAD/P8
Mobile LED screen changes the way that you work
You need no more than 15 minutes to prepare your trailer.
Screen unfolding is fast and easy. One person is able to do it in quarter of an hour.
Operator needs to connect the two halves of the screen using the fast locks. All the lifting and rotation is being handled by the trailer’s mast.
For your convenience, you can control it using an optional remote controller.
Now you can do in minutes, what once took hours to accomplish.
This is what we are proud of !
Specification: 2400*1180*150MM Rectangle
Model: HK-VMS/F 20
Made with stainless steel hardware
Dulux low glare, matt black power coat
Dual weather seals to case enclosure
Warranty: 48 Months
Want to get 20% discount than peer price, please contact me!
You need no more than 15 minutes to prepare your trailer.
Screen unfolding is fast and easy. One person is able to do it in quarter of an hour.
Operator needs to connect the two halves of the screen using the fast locks. All the lifting and rotation is being handled by the trailer’s mast.
For your convenience, you can control it using an optional remote controller.
Now you can do in minutes, what once took hours to accomplish.
This is what we are proud of !
Specification: 2400*1180*150MM Rectangle
Model: HK-VMS/F 20
Made with stainless steel hardware
Dulux low glare, matt black power coat
Dual weather seals to case enclosure
Warranty: 48 Months
Want to get 20% discount than peer price, please contact me!
Quantity:
Contact Now
add to cart

- Han Kun's design ideaWe have been enriching the signage, design & advertising industry VMS for 15 years.
- Building stronger brands & generating amazing graphics for you.
- Excellent design can fulfill the great dream of users.
- The connect between designer and client are very strong.
Energy Saving Is The Core
High-quality LED display module bring you a good "visual" enjoyment. Han Kun has more than 10 years of producing experience and feedback from thousands of customers around the world tell us that we need in-depth communication on the purpose to have a better solution and deliver it!

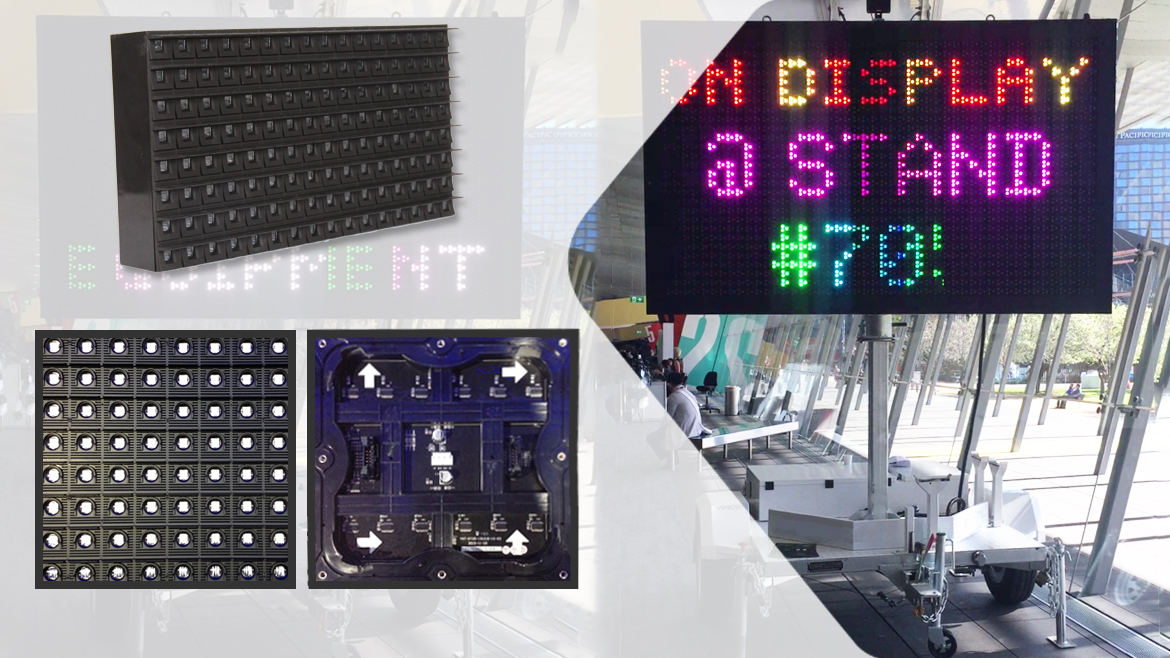

HAN KUN OT series modules specification | ||||||
Item | HK-OT10-RGB | HK-OT12-RGB | HK-OT16-RGB | HK-OT20 | HK-OT25-RGB | HK-OT31.25-RGB |
Pixel Pitch | 10mm | 12mm | 16mm | 20mm | 25mm | 31.25mm |
LED Type | 3 In 1 SMD+LENS | 3 In 1 SMD+LENS | 3 In 1 SMD+LENS | 3 In 1 SMD+LENS | 3 In 1 SMD+LENS | 3 In 1 SMD+LENS |
Pixel Density/m² | 10000 pixels | 6889 pixels | 3906 pixels | 2500 pixels | 1600 pixels | 1024 pixels |
Module Dimension WxHmm | 320x160 mm | 192x192 mm | 256x128 mm | 320x160 mm | 200x200 mm | 250x250 mm |
Module Resolution | 32x16 | 16x16 | 16x8 | 16*8 | 8z8 | 8x8 |
Cabinet Material | 2mm aluminum alloy | |||||
Screen Weight | 65KG/m² | |||||
Cabinet Dimension | 960x960mm | 960x960mm | 1024x1024mm | 960x960mm | 1000x1000mm | 1000x1000mm |
Brightness cd/m2 | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |||||
Driving Method | 2S | 2S | Static | Static | Static | Static |
Brightness Adjustment | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 |
Color Coordinates | C2 EN12966 | C2 EN12966 | C2 EN12966 | C2 EN12966 | C2 EN12966 | C2 EN12966 |
Viewing Angle | B6 EN12966 | B6 EN12966 | B6 EN12966 | B6 EN12966 | B6 EN12966 | B6 EN12966 |
Contrast Ratio | R3 EN12966 | R3 EN12966 | R3 EN12966 | R3 EN12966 | R3 EN12966 | R3 EN12966 |
Refresh Rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
Control system | Asynchronous control system available | |||||
Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | |||||
Display capacity | Text, image, graphics animations | |||||
Lifespan | >100000 hrs | |||||
Power Supply | 12-24V DC/110-230V AC | |||||
Max. power Consumption | 400 W/m² | 280 W/m² | 250 W/m² | 220 W/m² | 220 W/m² | 220 W/m² |
Ave. Power Consumption | 120 W/m² | 84 W/m² | 75 W/m² | 66 W/m² | 66 W/m² | 66 W/m² |
Operation Temperature | -25~ +60°C | -25~ +60°C | -25~ +60°C | -25~ +60°C | -25~ +60°C | -25~ +60°C |
Storage Temperature | -40~ +80°C | -40~ +80°C | -40~ +80°C | -40~ +80°C | -40~ +80°C | -40~ +80°C |
Operation Humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% |
Storage Humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Maintenance Method | rear | rear | rear | rear | rear | rear |
EN12966 Compliance | L3, C2, R3,B6 | L3, C2, R3,B6 | L3, C2, R3,B6 | L3, C2, R3,B6 | L3, C2, R3,B6 | L3, C2, R3,B6 |
This is a great product, brand new popular in the European Union and Australia and other countries, customized for high-end customers, its color and waterproof performance, including light pollution, energy-saving capabilities, reached the latest heights! All passed: R3 EN12966, B6 EN12966, C2 EN12966, etc. look for it!
Of course, HANKUN has optimized production and customer accumulation. If you want to know and get a 20% discount, contact our expert team now and don't have any worries!
Even if you are our peers, we will communicate with each other and make progress together! Work hard for our transportation industry!
We are an open company! Although only a young company of more than 10 years, we like to cooperate!
Of course, HANKUN has optimized production and customer accumulation. If you want to know and get a 20% discount, contact our expert team now and don't have any worries!
Even if you are our peers, we will communicate with each other and make progress together! Work hard for our transportation industry!
We are an open company! Although only a young company of more than 10 years, we like to cooperate!
We Offer Multi-Modal Transportation Management for a Connected World
Any idea you have, we will realize it for you! Whether it is used for lease operation or commercial use!

-
OUR COMPETENCESmart Mobility SolutionsFor 4G or 5G, we use the most cutting-edge IoT cloud platform technology to control equipment, including geographic location GPS, equipment status, whether it is leased or commercial, Han Kun is developed for your application!
-
We program your message remotely and can change it for free at any time.
-
Also it will be a graet way to establish traffic management at your event,function or business site.
-
We equip you with more advanced management systems
WE RUN AROUND THE WORLD TO COOPERATE WITH USERS
Provide VMS Display Solutions
Trailer structure scheme, software management, ITS industry summit...
