classic variable message trailer amber

• Matrix Dimensions: W2000mm x H1600mm
• Resolution: Each pixel is made up of 4 amber LEDs.
• Pixel Pitch:P37.5mm
• Matrix Configuration: 48 pixels in width (1800mm) and 35 pixels in height (131.5mm).

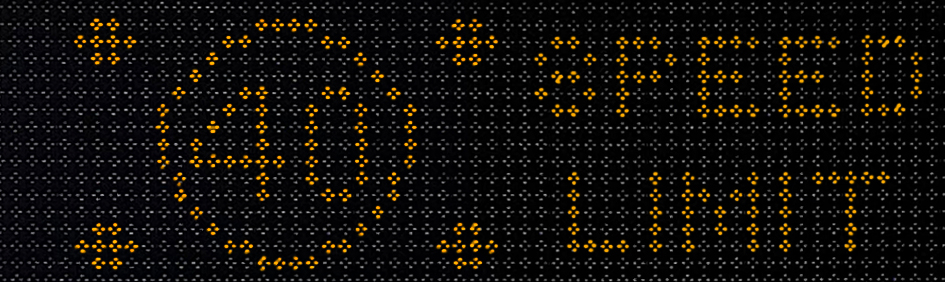

• Character Display: Supports up to 5 lines with 8 characters on each line. Each character is constructed from a 5 x 7 pixel matrix. A total of 40 standard fonts are available.
• Key Feature: The VMS is capable of displaying dynamic graphics combined with text. It's not limited by graphics or language, allowing for the display of content in any global language. It has a storage capacity for over 300 messages.
• Software Capabilities: Remote VMS management, GPS geolocation control, electronic fencing, and more.
• Content Editing: Compatible with mobile phones, laptops, and PCS



• Construction: Crafted from hot-dip galvanized steel, the trailer is MIG welded and boasts a yellow powder-coated frame for added durability.
• Power System: Equipped with a hydraulic mast lifting mechanism and 2 units of 12V gel deep-cycle batteries (200AH) for prolonged operation.
• Solar Capabilities: This VMS is fitted with 2 panels of 250W solar energy, complemented by a 40-amp solar controller, ensuring efficient energy conversion.
• User-friendly Lifting: The effortless hydraulic mast lifting system allows for easy one-person operation to raise or lower the display board.
• Towing: With a 50mm diameter tow coupling, it's compatible with the majority of vehicles.
• Optimal Positioning: The solar panel on the message board can rotate a full 360 degrees, locking at any desired angle for optimal sunlight capture.
• Stability & Safety: Double disc brakes ensure the message board remains stationary during use, complemented by a safety wheel chain. The Y-support provides stability to the message board when in transit.
• Longevity: The hot-dip galvanized steel structure promises corrosion resistance for over two decades.
• Compliance: Adheres to AS NZ standards, MUTCD compliant, and meets CE, EN1296, RoHS, EMC, and IP56 regulations.

• Functionality: Designed specifically for trailers with braking capabilities.

• Vms amber board Functionality: Designed to provide stability and guidance for trailers during movement and stationary periods.
• Payload Capacity: Robustly built to support a substantial payload of up to 12,00kg.

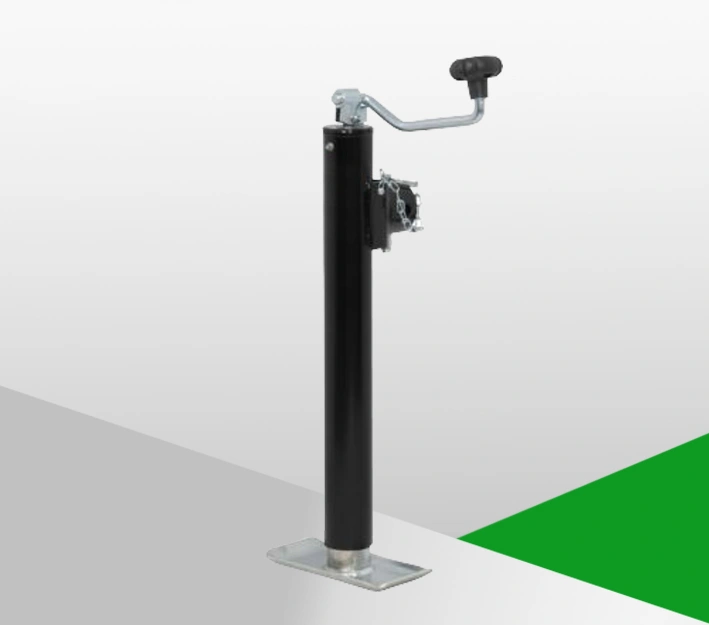

• Design: Features a swivel square jack for ease of operation.
• Finish: Finished in black galvanized coating for enhanced durability and resistance to the elements.



• Functionality: Engineered to provide stability and support for Portable Changeable Message Sign trailers during both deployment and transit.
• Design: Features a swivel square jack, allowing for easy maneuverability and positioni
• Payload Capacity: Robustly constructed to handle a substantial payload of up to 12,000kg, ensuring reliable performance even under heavy loads.
• Finish: Coated in black galvanized finish, offering enhanced durability, corrosion resistance, and a sleek appearance.

Amber Class C Variable Message Signs Features

• LED Composition: Each pixel is meticulously crafted with 4 amber LEDs, ensuring vibrant and clear displays.
• Pixel Spacing: Designed with a precise spacing of 37.5MM between each LED, optimizing visibility and clarity.
• Character Structure: Characters on the Amber Board are structured in a 6x7 format, allowing for optimal readability and presentation.
• Versatility: This design ensures a perfect display, making it ideal for various applications where clear messaging is paramount.
